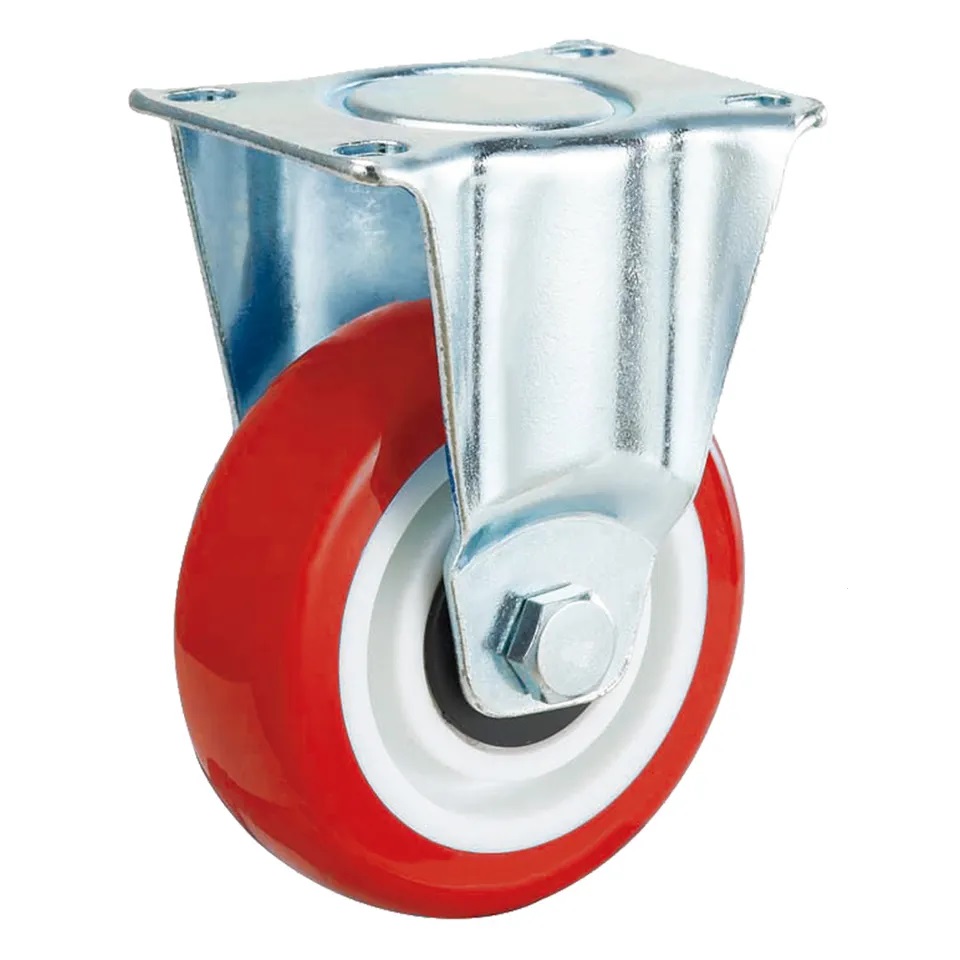

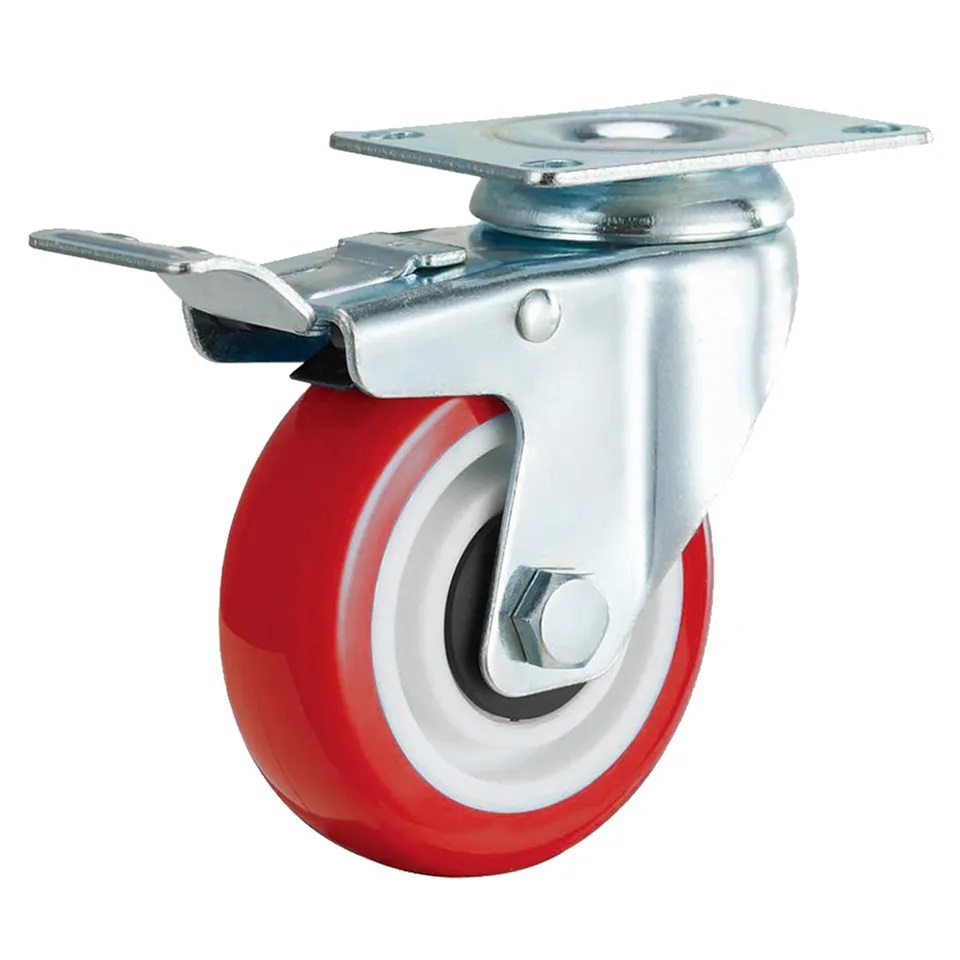

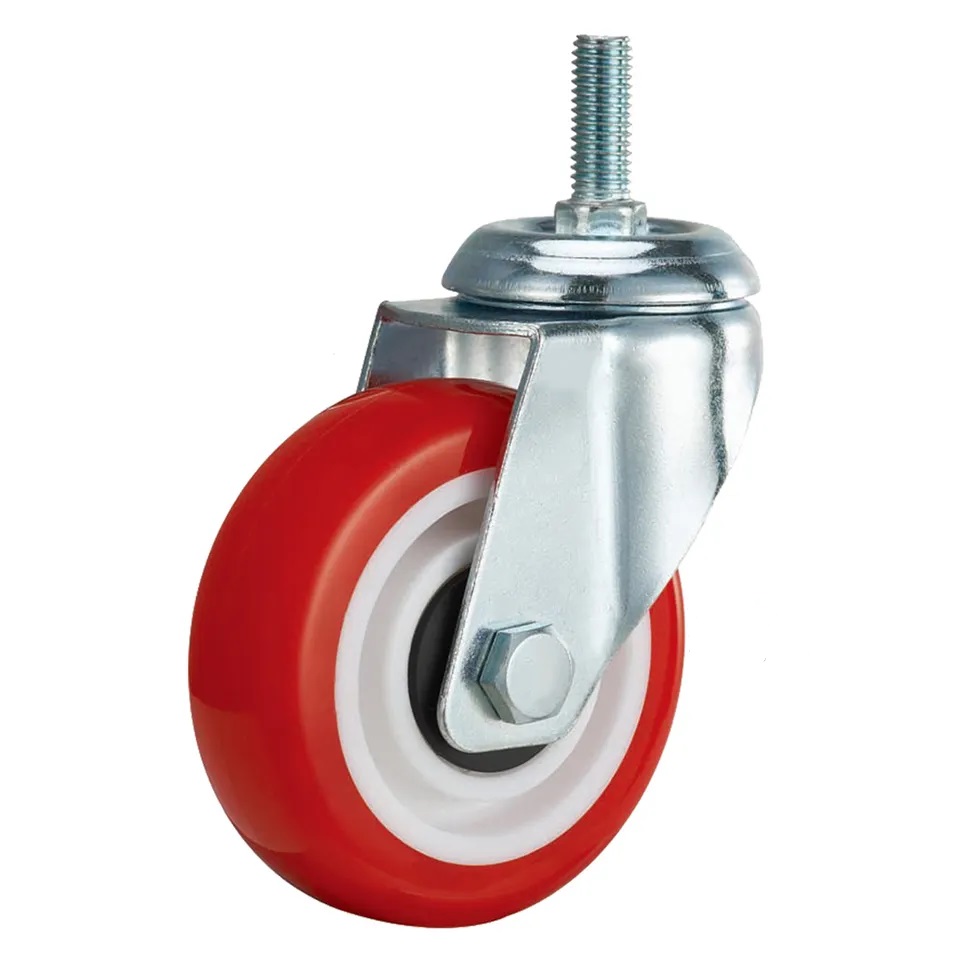

Description: Fix, Swivel, Screw, Bolt hole
Brake mode: Total brake, Side brake, Plastic brake
Bracket mode: Housing made of Pressed Steel, bright zinc plated, blue zinc plated, black lacquer, chrome plated.
Install with nut, axle and bush, the wheel tread is made of PU, the wheel center is made of PP, double bearing
| Details | 3 Inch | 4 Inch | 5 Inch |
| Wheel Diameter (mm) | 75 | 100 | 125 |
| Tread Width (mm) | 32 | 32 | 32 |
| Overall Height (mm) | 107 | 130 | 155 |
| Offset (mm) | 35 | 38 | 42 |
| Load Capacity (kgs) | 90 | 100 | 120 |
| Size of Plate (mm) | 94x65 | 94x65 | 94x65 |
| Hole Centre Distance (mm) | 74.5x45 | 74.5x45 | 74.5x45 |
| Screw Size (mm) | M12x30 | M12x30 | M12x30 |
| Fix Plate Size (mm) | 94x67 | 94x67 | 94x67 |
| Fix Hole Centre (mm) | 74.5x45 | 74.5x45 | 74.5x45 |
