PTFE Gland Packing seal

PTFE packing seal is made of pure PTFE dispersion resin. It is first made into a raw material film, and then twisted and woven into packing. This kind of packing has no other additives and can be widely used in food and pharmaceuticals. , papermaking, chemical fiber, etc. have higher cleanliness requirements, and valves and pumps with highly corrosive media.

Scope of application: Maximum temperature: 260°C, maximum operating pressure: 2.0MPa, PH value: 0-14.

DESCRIPTION

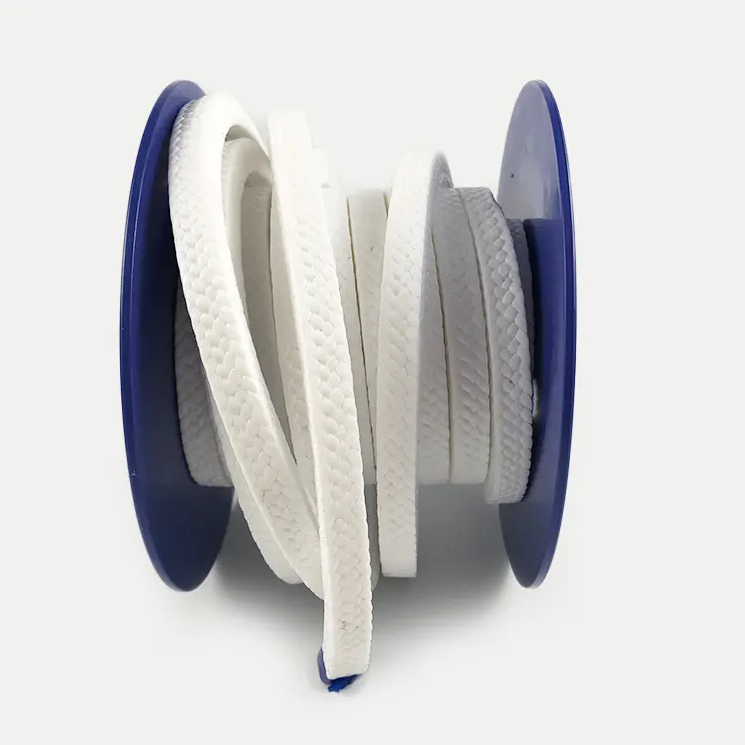

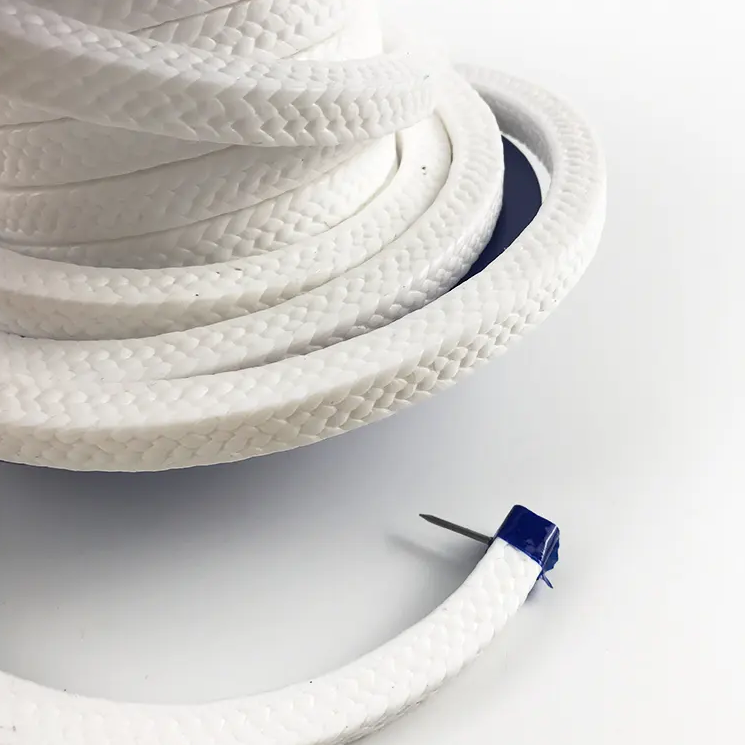

Pure PTFE Packing

Introduction: The PTFE packing is made of pure PTFE fiber, without PTFE emulsion and lubricating grease treatment. Because it is made of solid braid and has flexibility and adjustability, it can be well matched with the shaft and stuffing box, and has excellent corrosion resistance, good self-lubrication and anti-sticking.

Size: From 6 x 6 mm to 50 x 50mm.

Packaging: In coils of 5 to 10 kg, other weight on request.

Application: It can be used in chemical, food, medicine, paper, chemical fiber, fine chemical and other fields where pollution is not allowed.

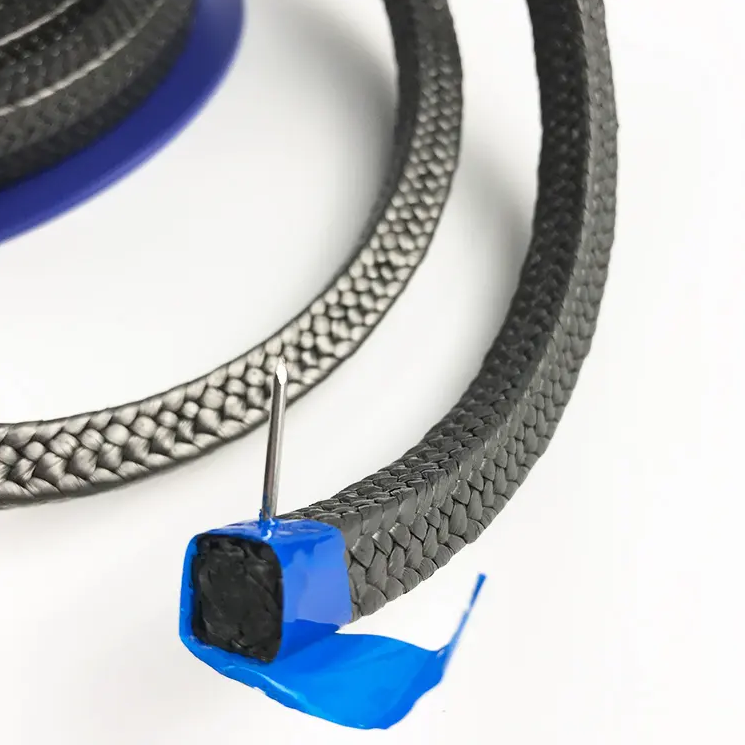

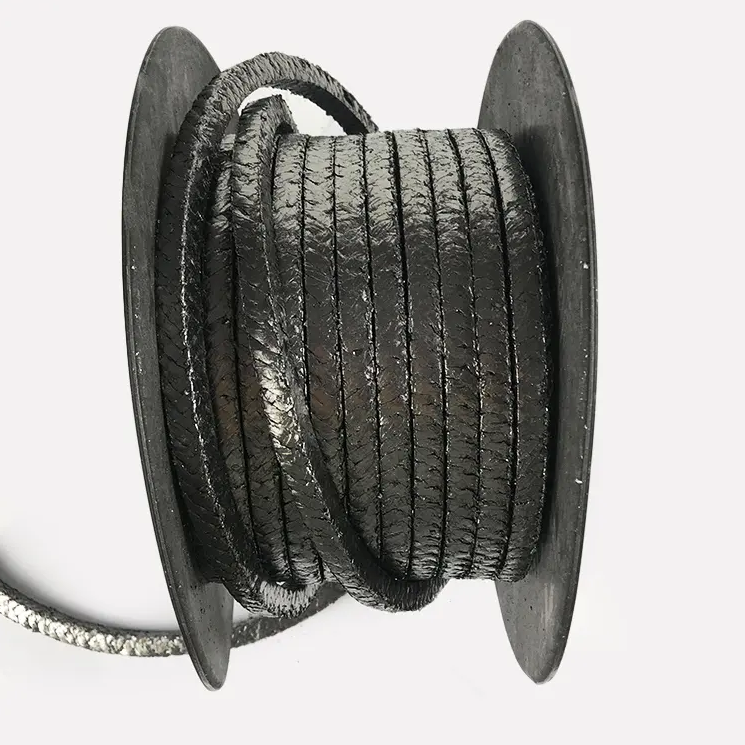

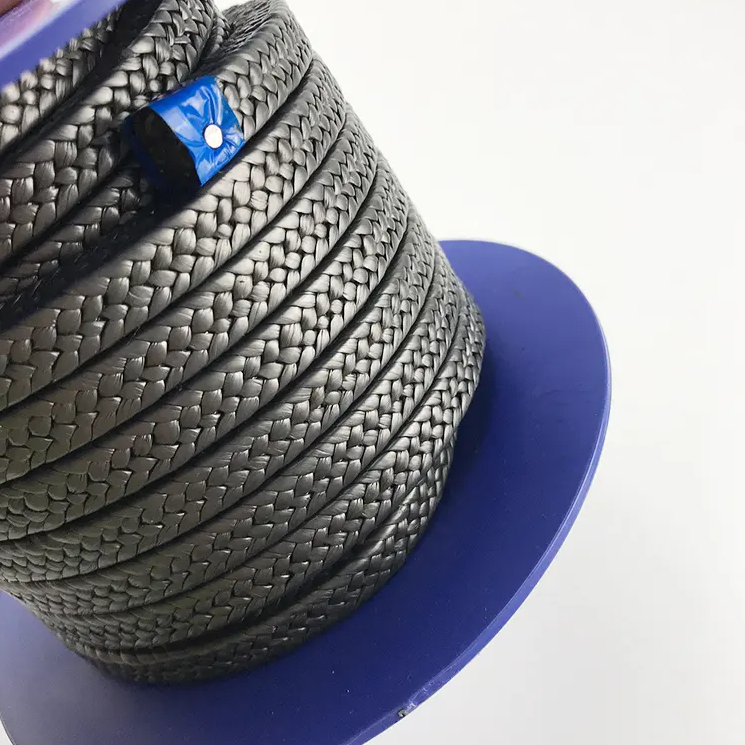

Graphite PTFE Gland Packing

Introduction: PTFE braided (impregnated) packing is made of F4 raw material tape by warp braiding (impregnated), with good chemical stability, good self-lubricating performance, unchanged strength under high temperature and humid environment, easy to load and dismantle.

Size: From 6 x 6 mm to 50 x 50mm. Packaging: In coils of 5 to 10 kg, other weight on request.

Application: It can be used in
chemical, food, medicine, paper, chemical fiber, fine chemical and other fields where pollution is not allowed.

Working temperature	-240°C~280°C
PH Range	0~14
Pressure	27.5 bar/296 bar
Speed	20 m/s
Equipment	rotating & reciprocating equipment, valves, soot blowers, expansion joints
Application Media	chemicals, solvents, corrosives, gases, water, steam, ammonia, air, oils, paper stock, liquor, condensate, boiler feed water
