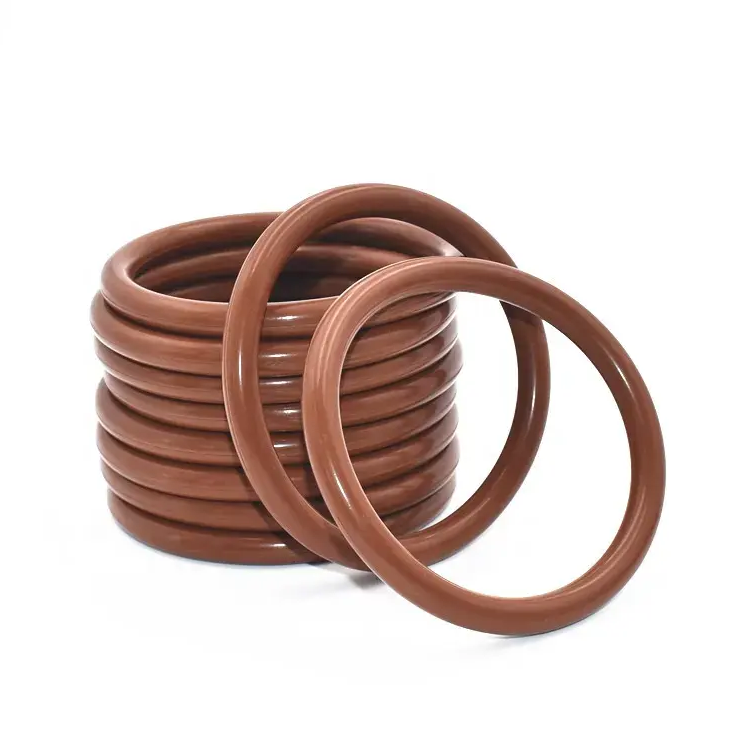

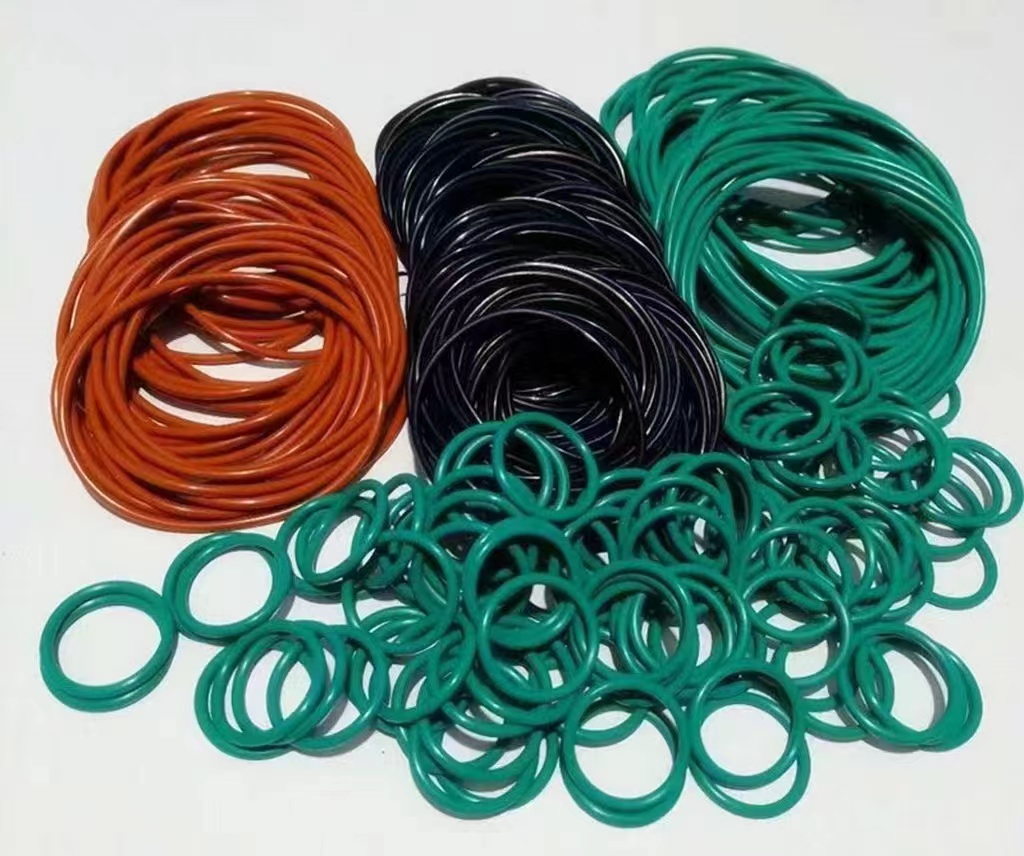

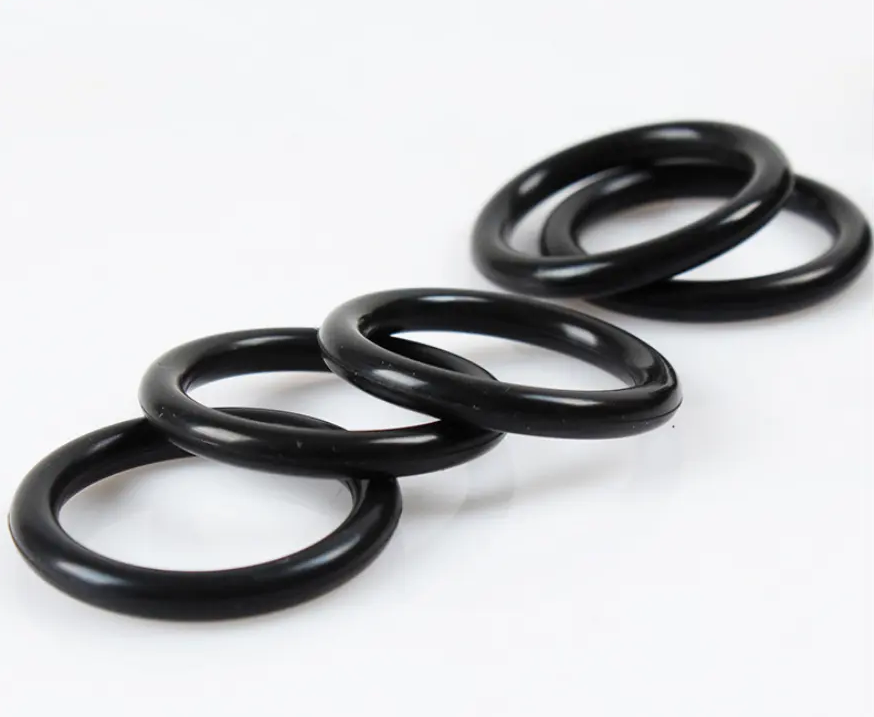

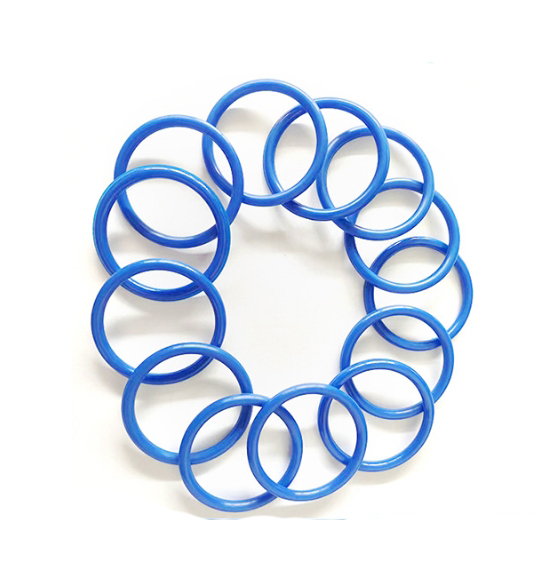

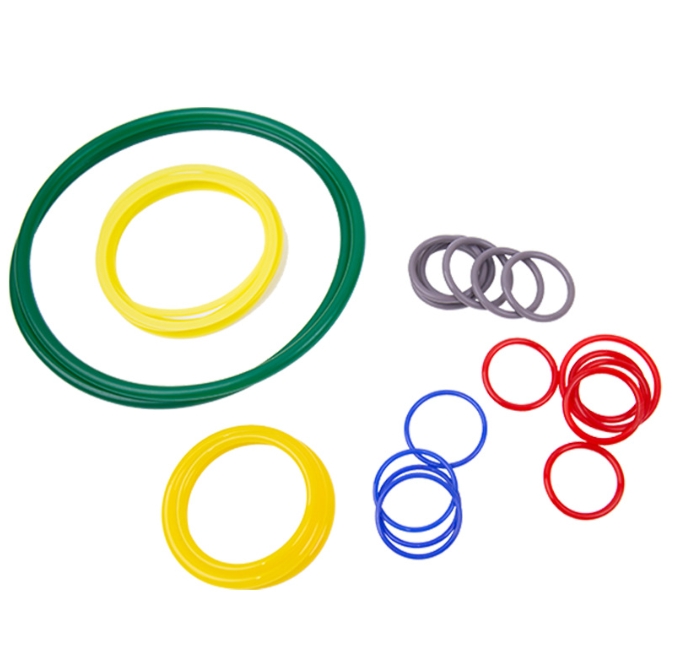

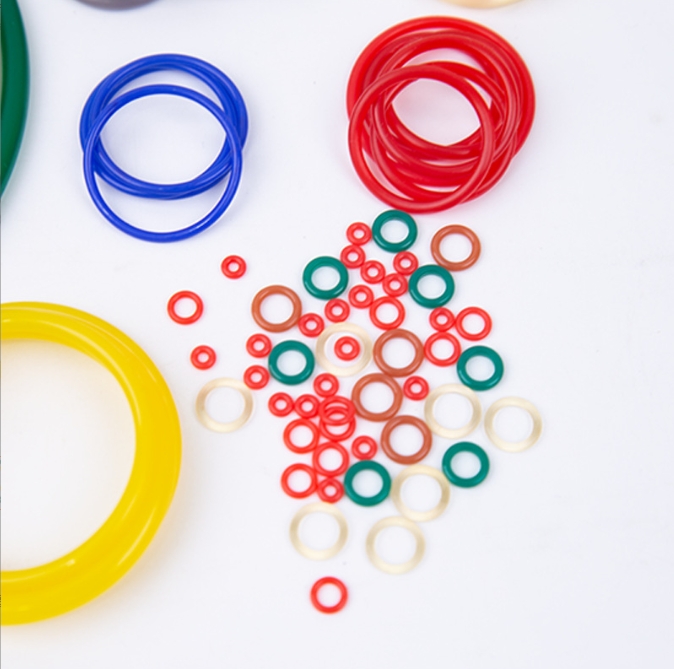

O-rings

Applications: for valves, for chemical applications, for petroleum industry, for gearboxes, for chemicals, for mining equipment, for refrigeration systems, for pumps, for industrial applications, for food industry machinery, for construction equipment, for boilers, air conditioning, for pharmaceutical industry, fittings, flanges, for rubber, for agricultural machinery, for water systems, for hydraulic fluids, for high temperature applications, for automobiles, for hydraulic applications, for pipes, for trucks

DESCRIPTION

Configuration: round

Material: Elastomer, CR, NBR, FKM, EPDM, Silicone

Applications: for valves, for chemical applications, for petroleum industry, for gearboxes, for chemicals, for mining equipment, for refrigeration systems, for pumps, for industrial applications, for food industry machinery, for construction equipment, for boilers, air conditioning, for pharmaceutical industry, fittings, flanges, for rubber, for agricultural machinery, for water systems, for hydraulic fluids, for high temperature applications, for automobiles, for hydraulic applications, for pipes, for trucks

Body Fluids: For Gases

Other features: single acting, static, custom, high pressure, high temperature, large bore, large

Temperature Limits: Maximum: 250 °C (482 °F) Minimum: -50 °C (-58 °F)

Pressure Limits: Maximum: 2,000 bar (29,007.5 psi) Minimum: 0 bar (0 psi)

An O-ring is a circular ring with a circular cross-section that ensures a tight seal against all types of fluids and gases. All compounds and parts are developed and manufactured in our facilities to the highest industry standards. Sizes - Wide range of standard sizes in stock - International size standards (AS568, BS1806, ISO3601, LJF Bague R…) - Specially developed O-rings for your project Compounds - Wide range of compounds: EPDM, FKM, NBR, HNBR, ACM, AEM, FFKM, Butyl, Silicone, fluorosilicone…. - Food, drinking water, gas and oil gas approved compounds - Shao Hardness from 50 to 98 - Temperature range from -50°C to +250°C - Can withstand high vacuum pressures up to 2000 bar - Specific cleanliness requirements



Product name Material Hardness Temperature
Rubber O-Ring Seals NBR(Buna,Nitrile) 60-90A -40℃-110℃
FKM(FPM) 70-90A -20℃-220℃
EPDM 60-90A -45℃-150℃
Silicone(VMQ) 10-70A -55℃-204℃
HNBR 60-90A -48℃-180℃
FFKM(FFKM,Kalrez) 70-90A -18℃-326℃
