Key Features of Thrust Bearings:

Axial Load Handling

Thrust bearings are designed to support axial (or thrust) loads, which are forces acting parallel to the axis of rotation. They are especially useful when there is a need to prevent axial displacement or movement in a rotating shaft.

Variety of Designs

Thrust bearings come in different designs to handle different load capacities and applications. The most common types are thrust ball bearings, thrust roller bearings, and needle thrust bearings.

Reduced Friction

Like other bearings, thrust bearings minimize friction between moving parts, helping to reduce wear and heat generation, thus improving the efficiency and lifespan of machinery.

Smooth Rotation

These bearings allow smooth rotation while supporting large axial loads, which is especially crucial in high-speed rotating machinery.

Types of Thrust Bearings:

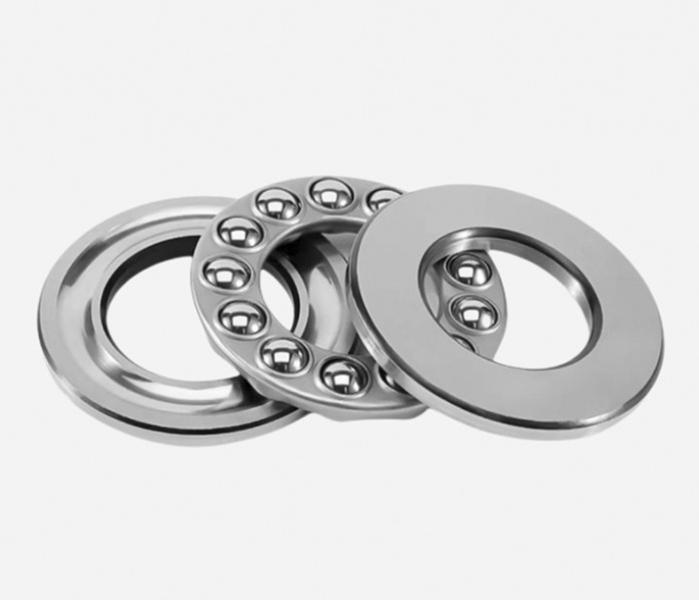

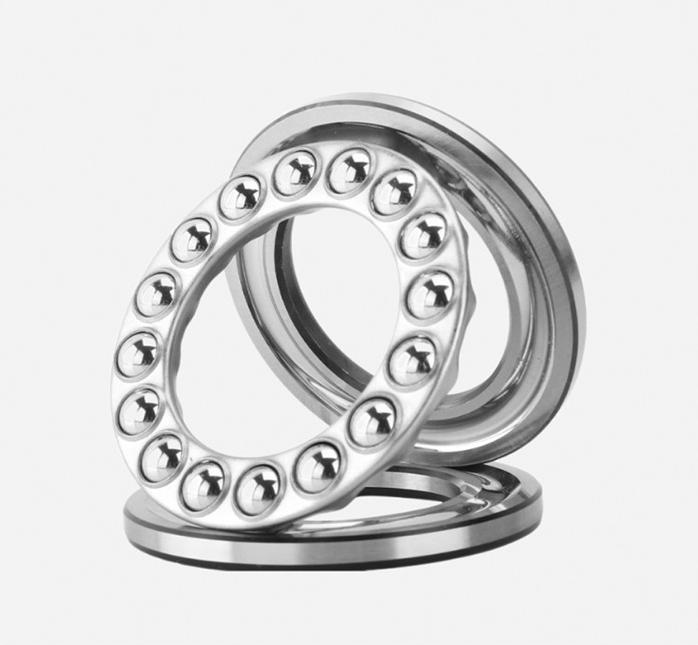

Thrust Ball Bearings

These bearings consist of ball elements between two rings (inner and outer). They are used to support axial loads in low to moderate-load applications. There are two main variations:

Single Direction Thrust Ball Bearing: Designed to support axial loads in one direction only.

Double Direction Thrust Ball Bearing: Can support axial loads in both directions, making it more versatile.

Applications: Thrust ball bearings are commonly found in automotive applications, machine tools, and other machinery where axial loads are prevalent.

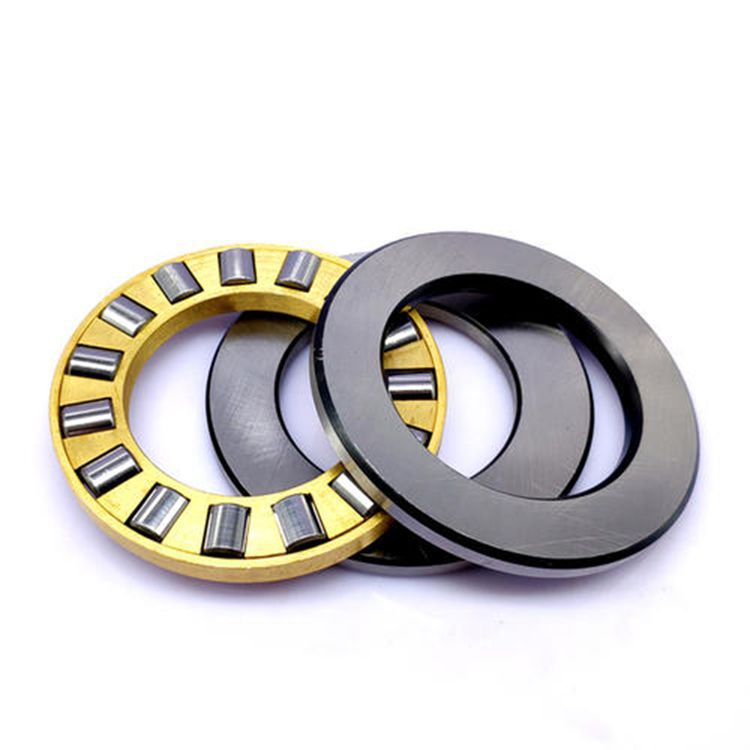

Thrust Roller Bearings

These bearings use cylindrical rollers instead of balls. The roller design provides a higher load capacity and greater durability than ball bearings. Thrust roller bearings are better suited for heavy-duty applications that require handling of larger axial loads.

Applications: These are often used in heavy machinery like construction equipment, automotive transmissions, and gearboxes.

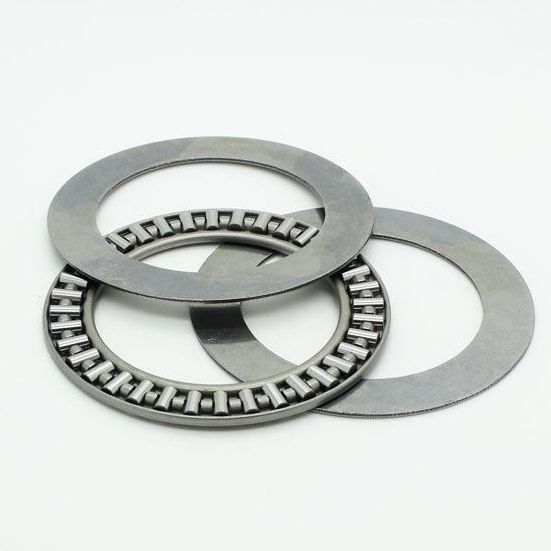

Needle Thrust Bearings

This type of thrust bearing uses needle-like rollers instead of cylindrical rollers or balls. These bearings are compact and can handle relatively high axial loads for their size, making them suitable for smaller, space-constrained applications.

Applications: Needle thrust bearings are used in small motors, gear assemblies, and automotive applications, where space is limited but axial load support is essential.

Tapered Thrust Bearings

These bearings have rollers that are tapered at an angle, which helps them handle both axial and radial loads. They are primarily used for medium to heavy-duty applications requiring more load-carrying capacity and high reliability.

Applications: Tapered thrust bearings are typically found in gearboxes, automotive differential systems, and heavy machinery.

Spherical Thrust Bearings

Spherical thrust bearings have a spherical design, allowing them to accommodate both axial and radial loads. They are capable of handling misalignment and can perform in applications where there is some degree of shaft misalignment.

Applications: These bearings are used in marine applications, large-scale industrial machinery, and some rolling mill equipment.

Applications of Thrust Bearings:Automotive Applications、Pumps and Compressors、Machine Tools、Electric Motors and Generators、Gearboxes、Aerospace、Wind Turbines、Hydraulic Systems

Advantages of Thrust Bearings:

High Load Capacity

Thrust bearings can carry high axial loads and provide stable support, even under heavy-duty conditions.

Improved Performance

They help to reduce friction and heat generation, improving overall efficiency and performance of machinery.

Space Efficiency

Thrust bearings, especially types like needle bearings, are compact and can fit into smaller spaces, making them ideal for tight spaces in machines.

Precision and Reliability

With proper maintenance and installation, thrust bearings can provide long-lasting and reliable performance in demanding environments.

Disadvantages of Thrust Bearings:

Limited Radial Load Capacity

Thrust bearings are designed specifically for axial loads and are not suitable for handling radial (side) loads. If radial loads are present, a separate bearing will need to be used.

Wear and Tear

While thrust bearings are designed to handle high loads, over time, the constant axial forces can cause wear, especially in high-speed applications.
