1. Main features of polytetrafluoroethylene gaskets:

Excellent corrosion resistance

PTFE can withstand almost all strong acids, strong alkalis, oxidants, organic solvents and corrosive gases. It is the only choice for sealing extreme chemical media and is suitable for all environments with a pH range of 0~14.

Excellent high and low temperature resistance

It can work stably for a long time in the temperature range of -200℃ to +260℃ without brittle cracking or softening, and is suitable for equipment sealing under extremely cold or high temperature conditions.

Extremely low friction coefficient and self-lubrication

The surface is smooth, the friction is small, it is not easy to adhere to impurities or scale, it is easy to disassemble and reuse, and it is especially suitable for pure or pollution-free occasions.

Good electrical insulation performance

The dielectric constant is stable and the volume resistivity is extremely high. It can be used in the field of electrical and electronic sealing.

Non-toxic, tasteless, physiologically inert

It complies with food and medical safety standards such as FDA and USP, and can be used in drinking water, food, pharmaceuticals, medical devices and other industries.

Aging-resistant, UV-resistant, not prone to aging and cracking

Long service life, suitable for long-term outdoor or harsh environment sealing.

2. Common types (by structure)

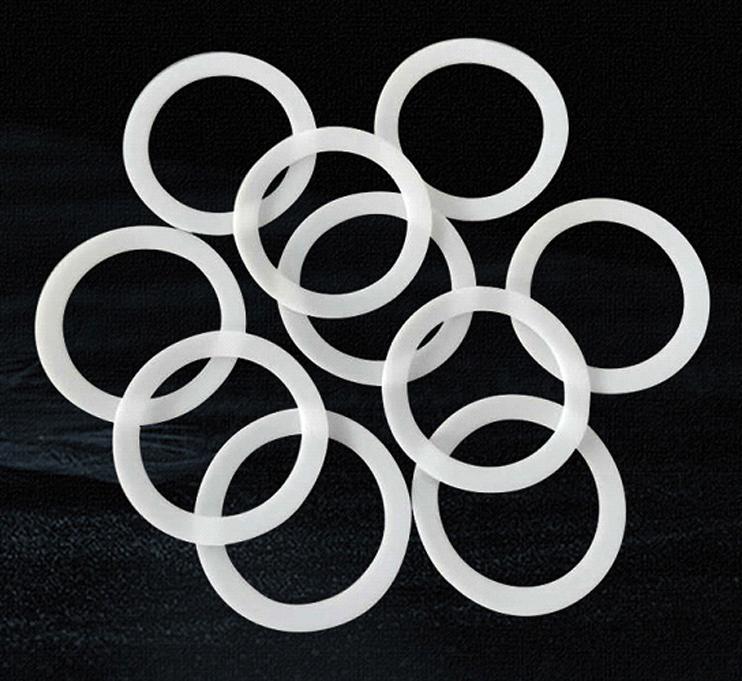

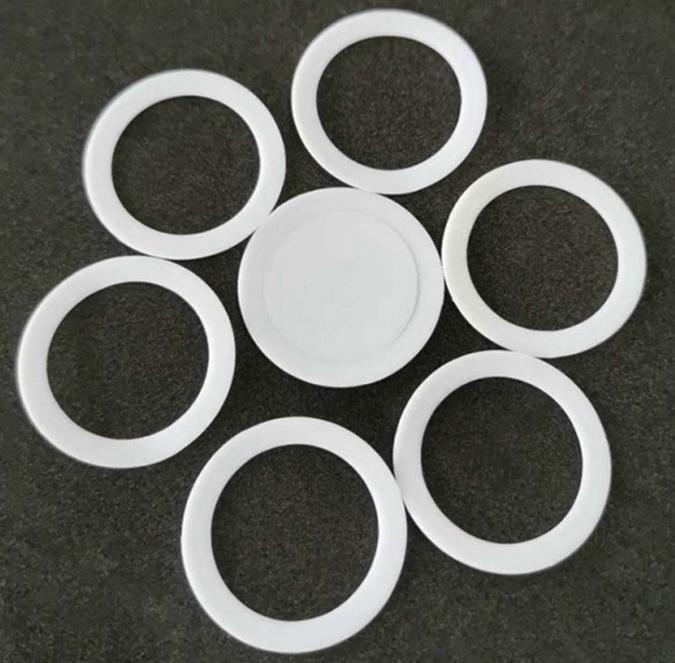

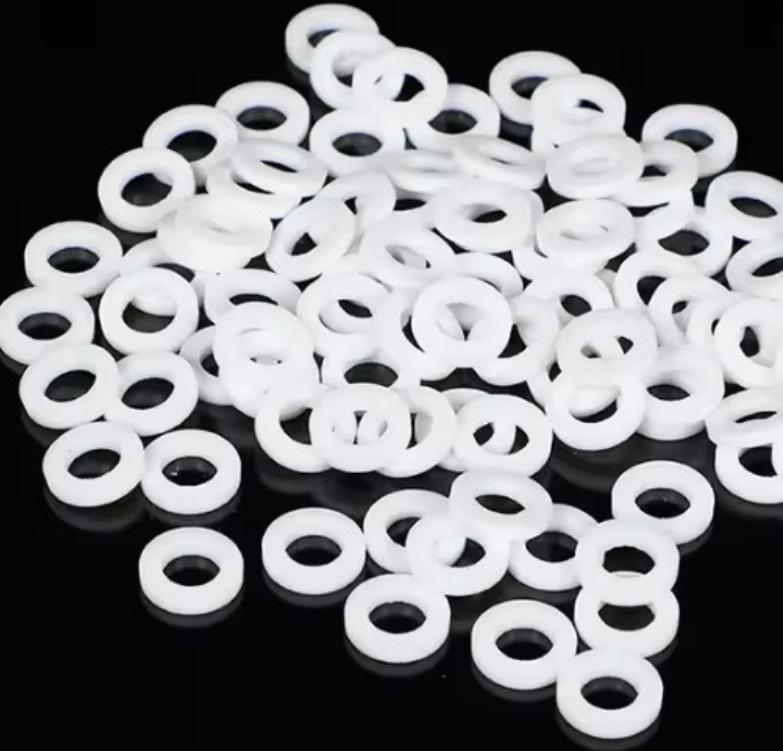

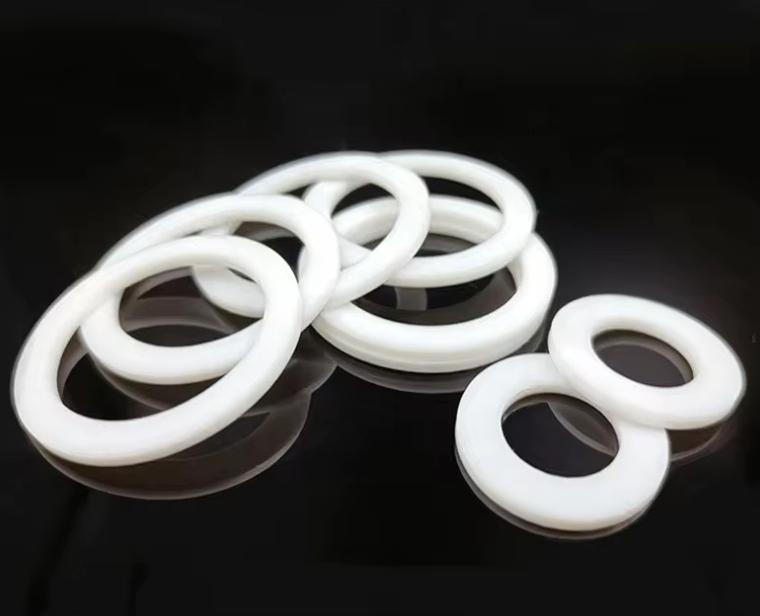

Pure PTFE gasket

Made from 100% polytetrafluoroethylene, medium flexibility, suitable for most chemical working conditions

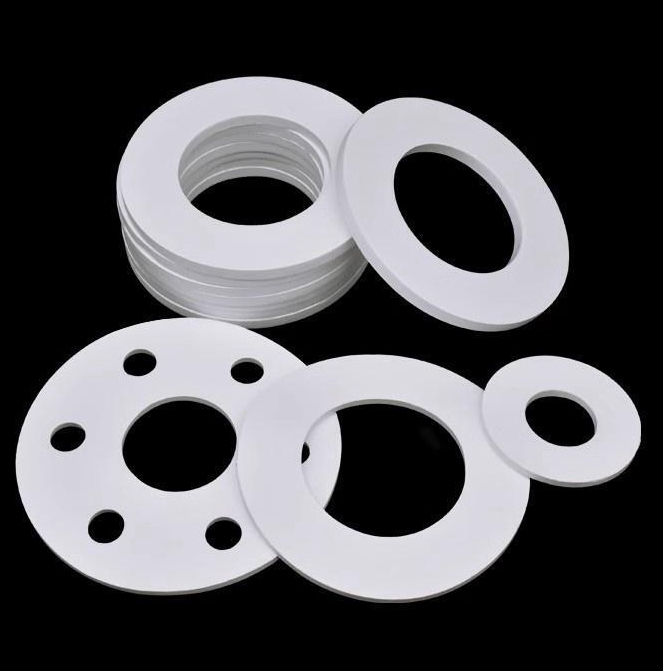

Can be turned into any size, or cut into standard flange gaskets

Expanded PTFE gasket (ePTFE)

Modified by micro-expansion, soft texture, good compressibility, more suitable for rough or irregular sealing surfaces

Typical representative: GORE® ePTFE, China's local ePTFE expanded gasket

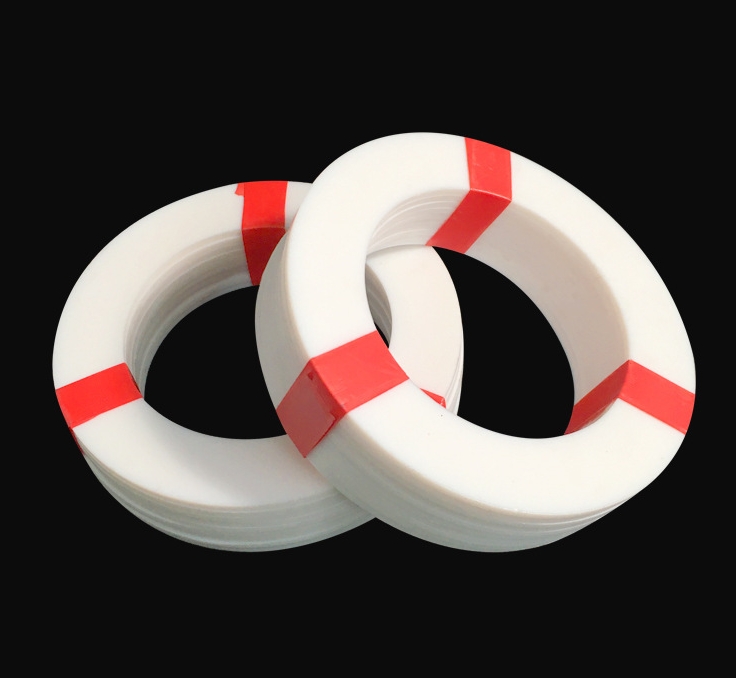

Modified PTFE gasket

Adding fillers such as glass fiber, carbon fiber, graphite, and ceramics to PTFE improves wear resistance, cold flow resistance, and pressure resistance

Applicable to high-pressure and high-stress flange connections

Coated gasket (PTFE coated with graphite or rubber core material)

The outer layer is PTFE, and the inner core is an elastic material (such as graphite, silicone rubber), combining softness and corrosion resistance

Mostly used for flange seals that require both flexibility and chemical resistance

III. Application areas

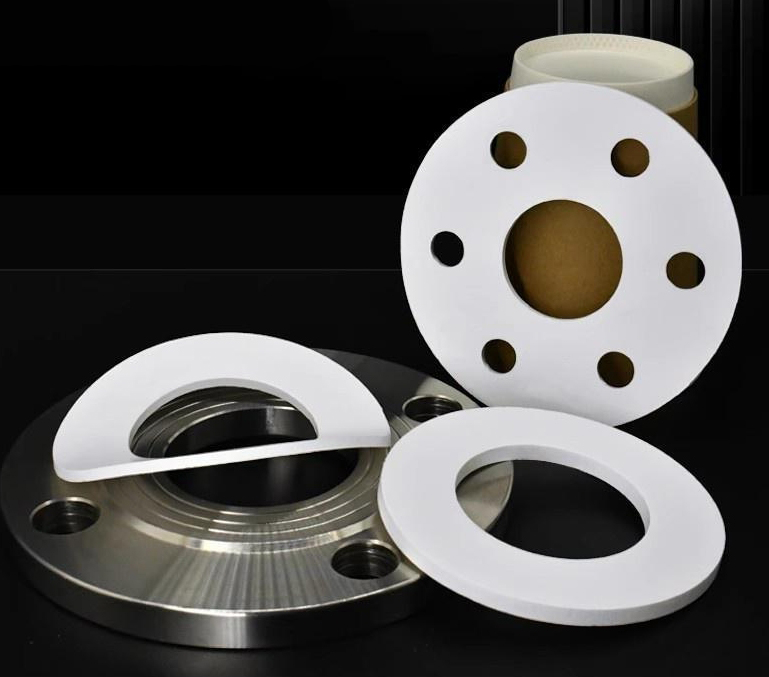

Chemical and petrochemical industries: acid and alkali pipelines, towers, and storage tank flange connection seals

Pharmaceutical and food equipment: reactors, filters, and drinking water device flange seals

Semiconductor and electronics industries: ultra-pure liquid delivery systems, vacuum chamber seals

Environmental protection equipment: waste gas treatment towers, desulfurization devices, strong oxidant medium systems

Military and aviation fields: high temperature and corrosion resistant sealing systems
