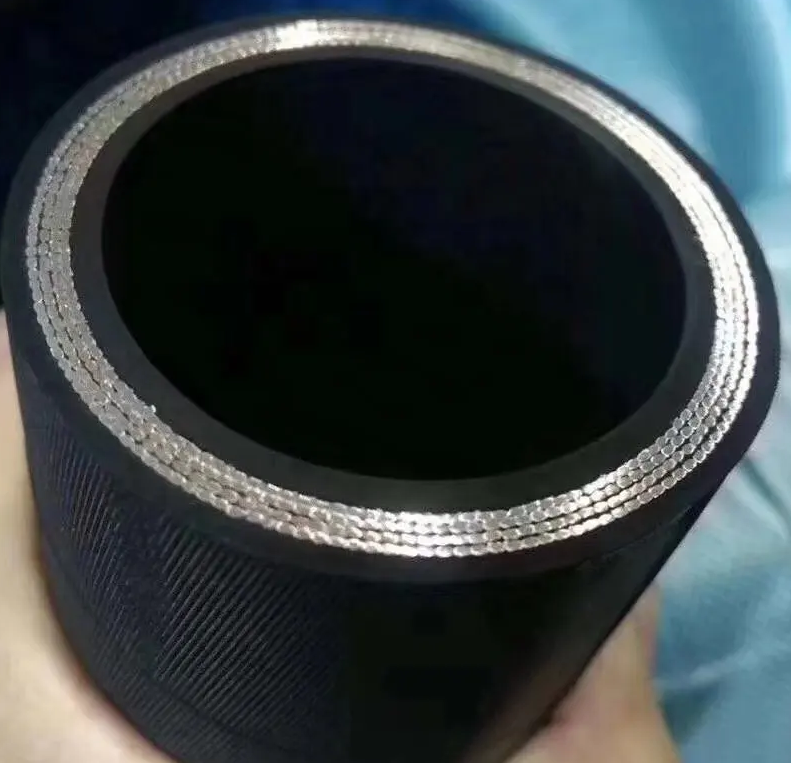

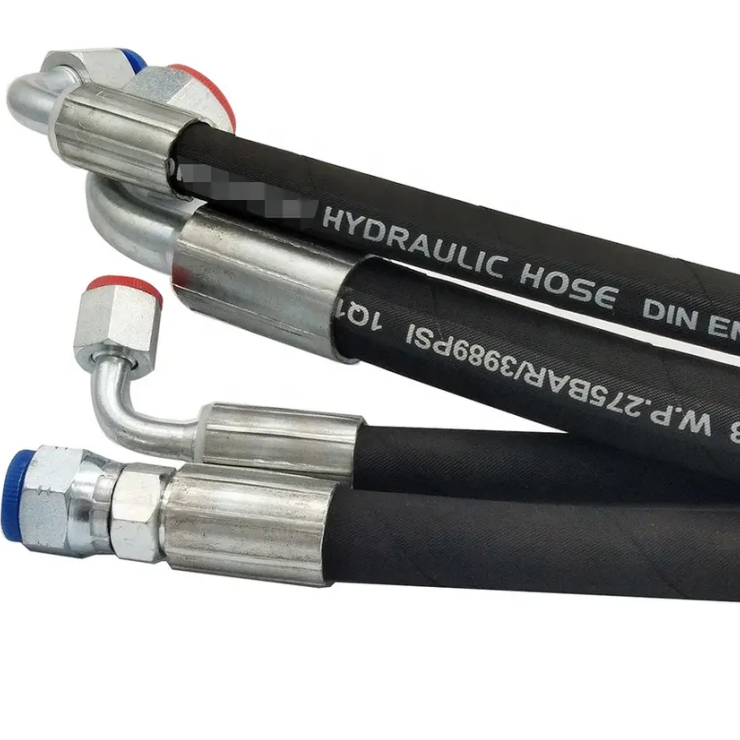

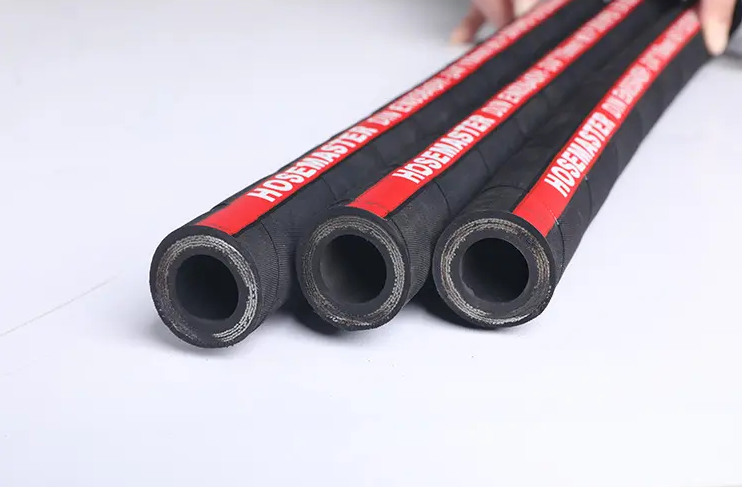

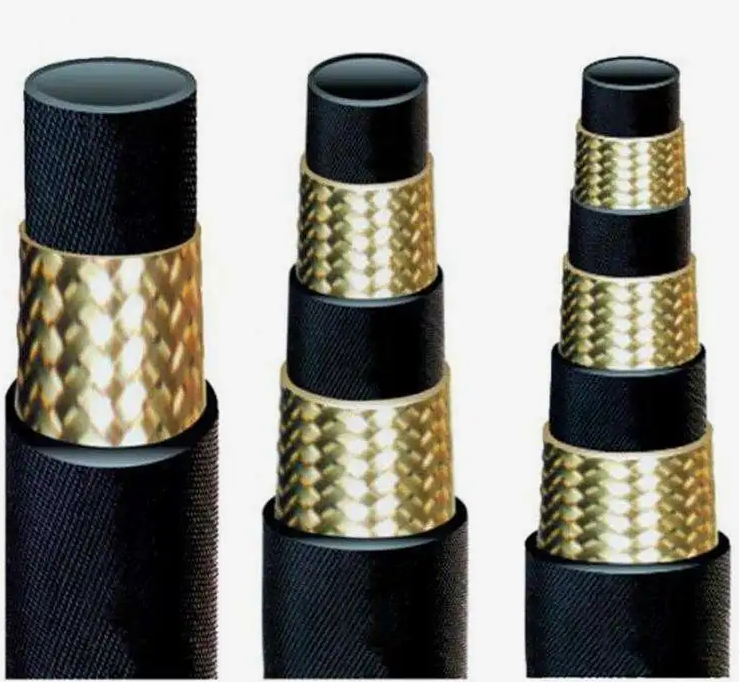

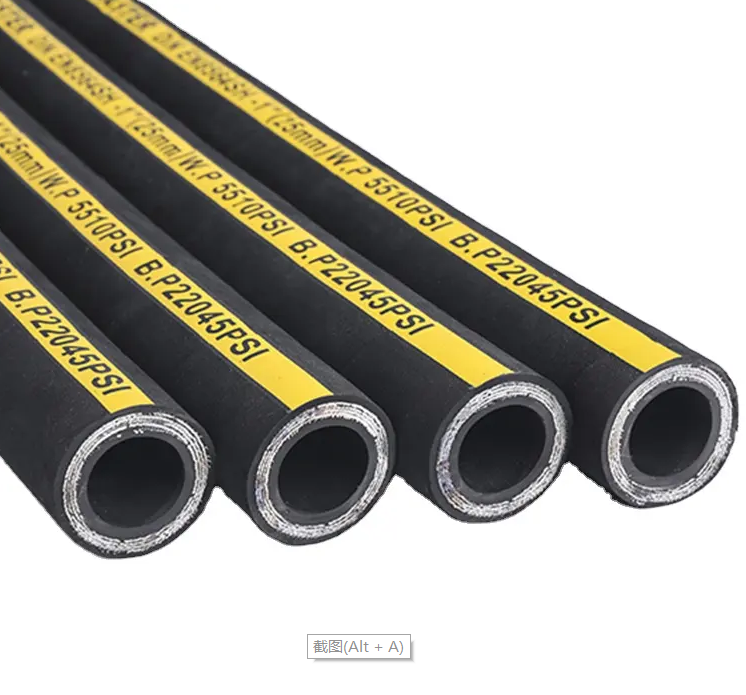

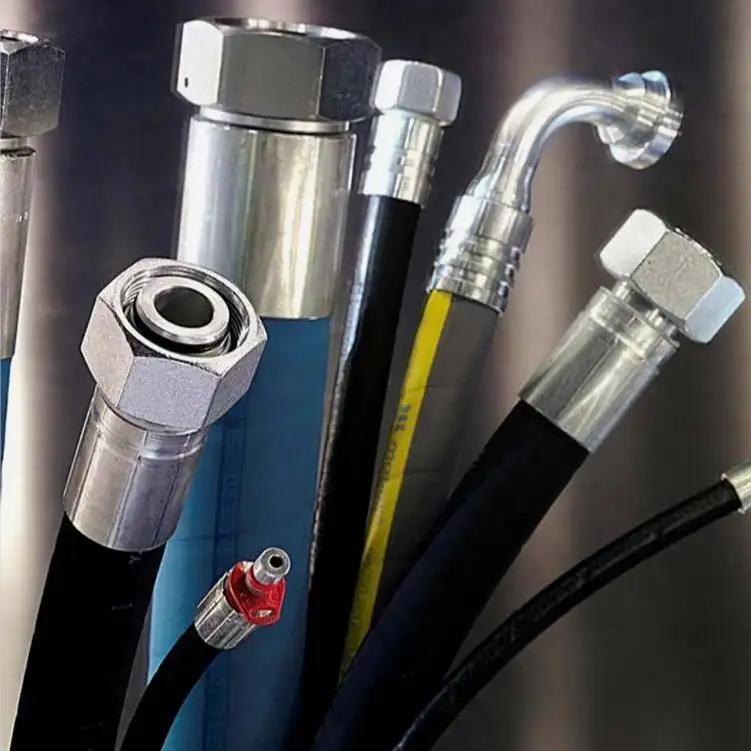

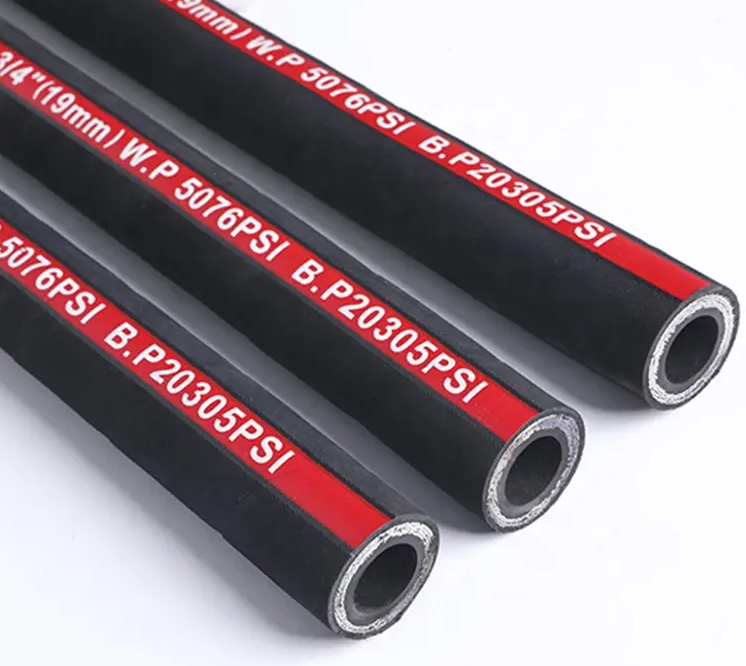

High Pressure Hydraulic Rubber Oil Hose

The application of the hydraulic hose: hydraulic hose The high pressure hose is mainly used for Mine hydraulic support ,oilfield exploitation ,object construction ,lifting transport ,metallurgic forging ,mine equipment, ship, injection molding machinery,agricultural machinery , all kinds of machine tools and various industrial sectors. Machanization and automation in the hydraulic system of conveying with a certain pressure(high pressure) and the of the oil-based(such as mineral oil, soluble oil, hydraulic oil, fuel oil and lubricants) and water-based liquid (such as mineral oil, soluble oil, hydraulic oil, fuel oil and lubricants) Emulsion, the oil-water emulsion, water) and liquid transmission used. The maximum working pressure-resistant up to 70-100MPa.

DESCRIPTION

Item standard	Hose ID	Wire OD	Hose OD	Working Pressure	Burst Pressure	Weight	Length	Minimum Bend Radius
SAE100R1AT/1SN	6	11.1	13.4	22.5	90	0.21	50/100	102
	8	12.7	15	21.5	85	0.24	50/100	114
	10	15.1	17.4	18	72	0.33	50/100	127
	13	18.3	20.6	16	64	0.41	50/100	178
	16	21.4	23.7	13	52	0.45	50/100	203
	19	25.4	27.7	10.5	42	0.58	50/100	241
	25	33.3	35.6	8.8	35	0.88	50	305
	32	40.5	43.5	6.3	25	1.23	20-40	419
	38	46.8	50.6	5	20	1.51	20-40	508
	51	60.2	64	4	16	1.97	20-40	635
SAE100R2AT/2SN	6	12.7	15	40	160	0.36	50/100	102
	8	14.3	16.6	36	140	0.45	50/100	114
	10	16.7	19	33.1	132	0.54	50/100	127
	13	19.8	22.2	27.6	110	0.68	50/100	178
	16	23	25.4	25	100	0.8	50/100	203
	19	27	29.3	21.5	85	0.94	50/100	241
	25	34.9	38	16.5	65	1.35	50	305
	32	44.5	48.3	12.5	50	2.15	20/40	419
	38	50.8	54.6	9	36	2.65	20/40	508
	51	63.5	67.3	8	31	3.42	20/40	635
