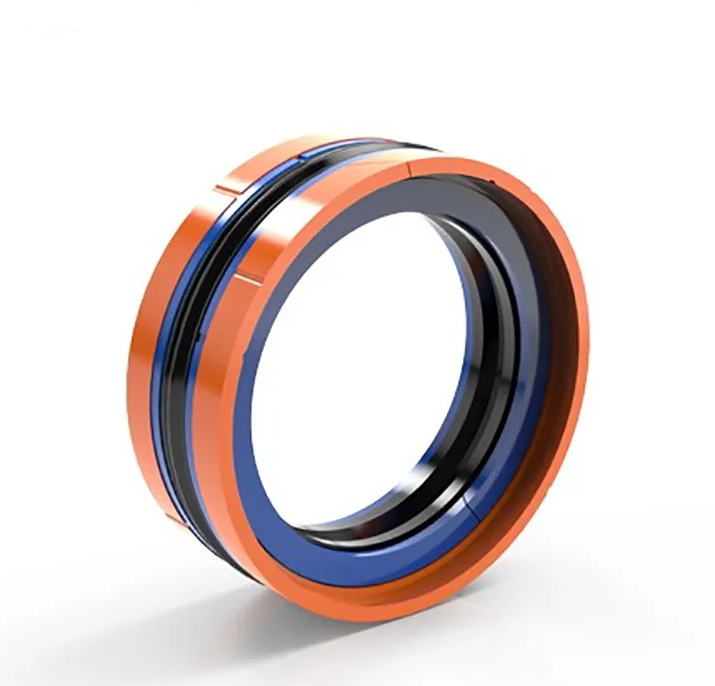

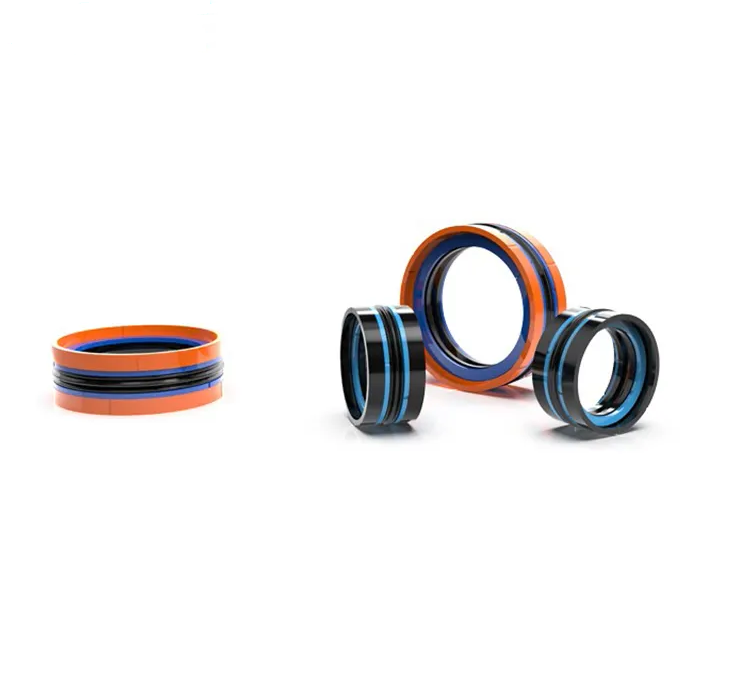

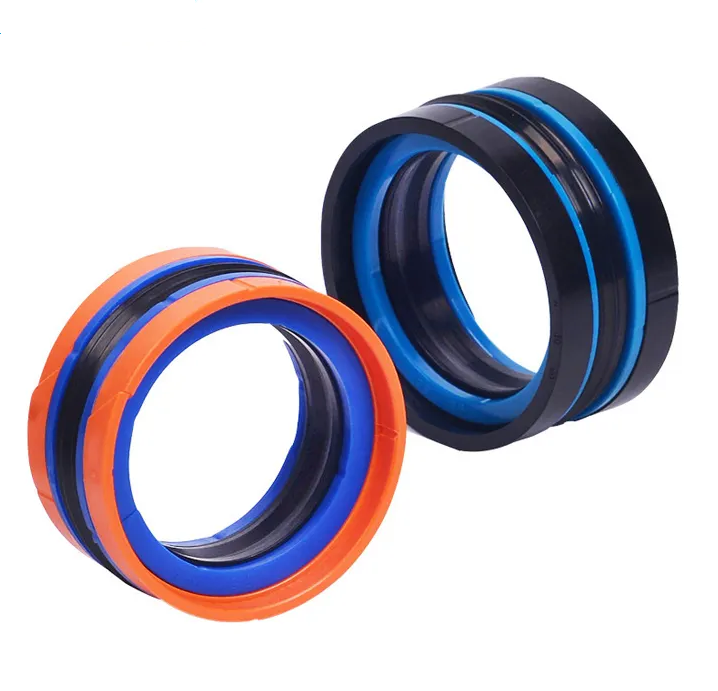

Double-acting Compact Piston Seal

With five part designs, our RSOOO compact seals are used as Compact piston seals for double-acting cylinders with a maximum pressure of 35MPa.

RSOOO has an NBR ring with 3 sealing lips in the middle; Elastomer has an good sealing effect in both dynamic and static conditions.2 polyester elastomer back up rings to reduce the allowable clearance on both sides;back up ring prevent the elastomer be extruded into the sealing gap. 2 POM ring as a guide.the role of the guide ring is to help the piston in the cylinder guide and absorb the radial force. it mainly used in hydraulic cylinders as a piston seal. As shown in the design, the sealing operation is performed by an NBR ring.



DESCRIPTION

With five part designs, our RSOOO compact seals are used as Compact piston seals for double-acting cylinders with a maximum pressure of 35MPa.

RSOOO has an NBR ring with 3 sealing lips in the middle; Elastomer has an good sealing effect in both dynamic and static conditions.2 polyester elastomer back up rings to reduce the allowable clearance on both sides;back up ring prevent the elastomer be extruded into the sealing gap. 2 POM ring as a guide.the role of the guide ring is to help the piston in the cylinder guide and absorb the radial force. it mainly used in hydraulic cylinders as a piston seal. As shown in the design, the sealing operation is performed by an NBR ring.



OUR Advantages





-Good sealing effect, also suitable for holding cylinders.

-Insensibility against shock loads and pressure peaks.

-Capable of installation in closed grooves ofr reduced machining costs.

-Easy installation.

POM+NBR+TPE





Designed with precision and engineered to last, the Compact Piston Seal is the perfect solution for demanding applications where space is limited. Its low-friction design reduces energy consumption and minimizes wear, ensuring maximum efficiency and longevity.

Whether you’re in the automotive, aerospace, or hydraulic industry, the Compact Piston Seal is the seal of choice for those who demand the best. Its compact size, exceptional performance, and reliability make it the go-to solution for any application.

Don’t settle for anything less than the best. Choose the Compact Piston Seal and experience the difference in performance, efficiency, and longevity.





Colour Brown Silver Black Grey Red
Material rubber PTFE Plastic Silicone PU Waterproof PVC
type Mechanical Seal O Ring SEALING STRIP Bellow Seal Floating Seal Oil Hydraulic
Working Media petroleum bassed hydraulc oil, fire-resustant hydraulic oil. evironmental protecting hydraulic oil(biology oi), water and other medium, according to the sealing mateial



Material description PTFE filled Bronze, PTFE filled carbon fiber and MoS2, PTFE filled Graphite, PTFE filled PI, PTFE filled
Ekonol, PU and so on.
Available Color Black, green, coffee, white, red, blue, gold and so on
Material Strength High resistance to extrusion, good leak proof performance, easy assembly.
temperature -35~+100℃
speed 0.5m/s
pressure ≤35MPa
Applied device Standard cylinders /Holding cylinders/Agricultural machinery, etc.
