Key Advantages

✅ Unmatched Durability

Naturally corrosion-resistant (no rust or degradation)

Withstands extreme temperatures (-50°C to +200°C)

50+ year lifespan – Outlasts concrete structures

✅ Structural Integrity

High tensile strength (≥200 MPa)

Maintains seal under dynamic joint movements

✅ 100% Watertight

Cold-welded joints for seamless continuity

Impervious to UV, ozone, and chemicals

✅ Sustainable & Safe

Recyclable material

Non-toxic (safe for potable water applications)

Technical Specifications

Parameter Specification

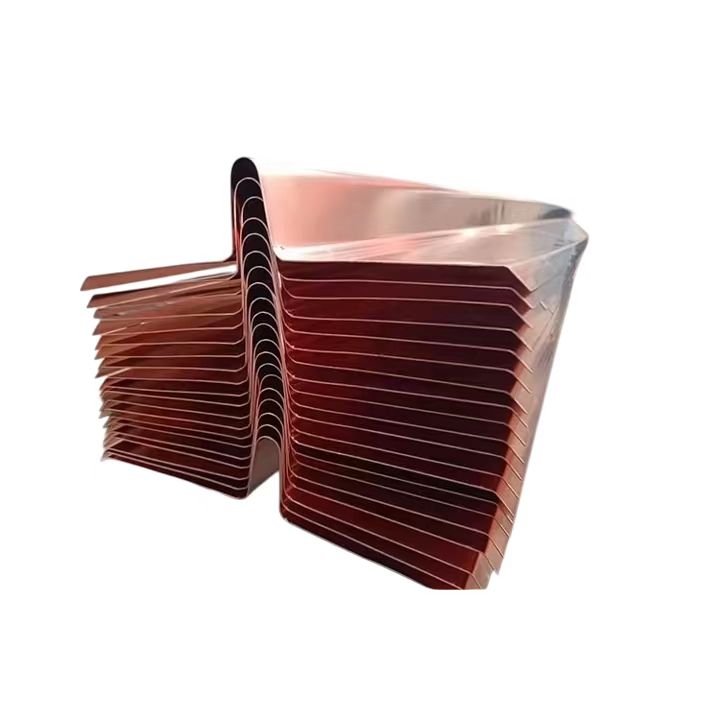

Material C11000 Copper (or Phosphor Bronze for marine use)

Thickness 0.3mm – 1.5mm (customizable)

Width 150mm – 600mm

Joint Method Soldering/Brazing (>300°C melt point)

Pressure Rating Up to 10 bar (custom designs for higher pressure)

Typical Applications

? Civil Engineering

Tunnel segment joints (subways, undersea tunnels)

Dam construction joints

? Building Construction

Basement expansion joints

Elevator pits & water tanks

⚡ Specialty Projects

Nuclear containment structures

Coastal/marine installations

Installation Guide

Pre-Embedding – Anchor in first concrete pour using tie wires.

Joint Welding – Use oxyacetylene torch for continuous seams.

Concrete Protection – Prevent direct contact with alkaline additives.

(Pro Tip: Pair with Bentonite swell strips for redundant sealing!)

Why Engineers Prefer Copper Waterstops?

✔ Proven in mega-projects (Three Gorges Dam, Channel Tunnel)

✔ Zero maintenance – No replacement needed

✔ Superior ROI despite higher upfront cost

⚠️ Note: Requires skilled welding labor – Ask about our on-site training!

Ordering Options

? Standard strips (20m rolls)

? Custom profiles (T-shape, L-shape)

? Pre-fabricated corners (90°/135°)
