Key Features of a Timing Belt:

Precise Synchronization

The primary function of a timing belt is to keep the crankshaft and camshaft(s) in sync, ensuring that the engine's valves open and close at the proper times relative to the piston position. This synchronization is crucial for engine efficiency, performance, and preventing internal engine damage.

Toothed Design

Timing belts have teeth along their length that mesh with corresponding teeth on the pulleys or sprockets. This toothed design ensures that the belt does not slip, which is crucial for precise timing.

Material Construction

Timing belts are typically made of high-strength materials like reinforced rubber, which is often combined with fibers (like fiberglass, Kevlar, or steel) to add strength and flexibility. These materials ensure the timing belt has high durability, wear resistance, and the ability to handle engine heat.

Noise and Vibration Reduction

Timing belts are generally quieter and produce less vibration compared to timing chains (another common engine component used for synchronization). This contributes to smoother engine operation.

Durability

Depending on the material and construction, timing belts are durable and can last for tens of thousands of miles (typically 60,000–100,000 miles or more). However, over time, they can stretch, wear, and potentially break if not replaced at the recommended intervals.

Low Maintenance

Timing belts generally require less maintenance than chains and are often more affordable to replace. However, they do need to be changed regularly, as a failed timing belt can cause catastrophic engine damage (for instance, bent valves or damaged pistons in interference engines).

Applications of Timing Belts:

Automotive Engines

In modern internal combustion engines, timing belts are widely used to synchronize the crankshaft with the camshaft(s). This ensures the pistons and valves operate in the correct sequence.

Industrial Machinery

Timing belts are also used in various mechanical applications, including conveyors, robots, and manufacturing equipment, where precise timing of movements is required.

Water Pumps and Alternators

In automotive engines, a timing belt may also drive auxiliary components like the water pump, alternator, and power steering pump, depending on the engine design.

HVAC Systems

Timing belts are used in some heating, ventilation, and air conditioning (HVAC) systems to drive fans and compressors with accurate timing for efficient operation.

Bicycles and Other Applications

Some bicycles use timing belts for power transmission from pedals to wheels, providing a clean, low-maintenance alternative to traditional chain systems. They're also used in other machinery where synchronized motion is critical.

Types of Timing Belts:

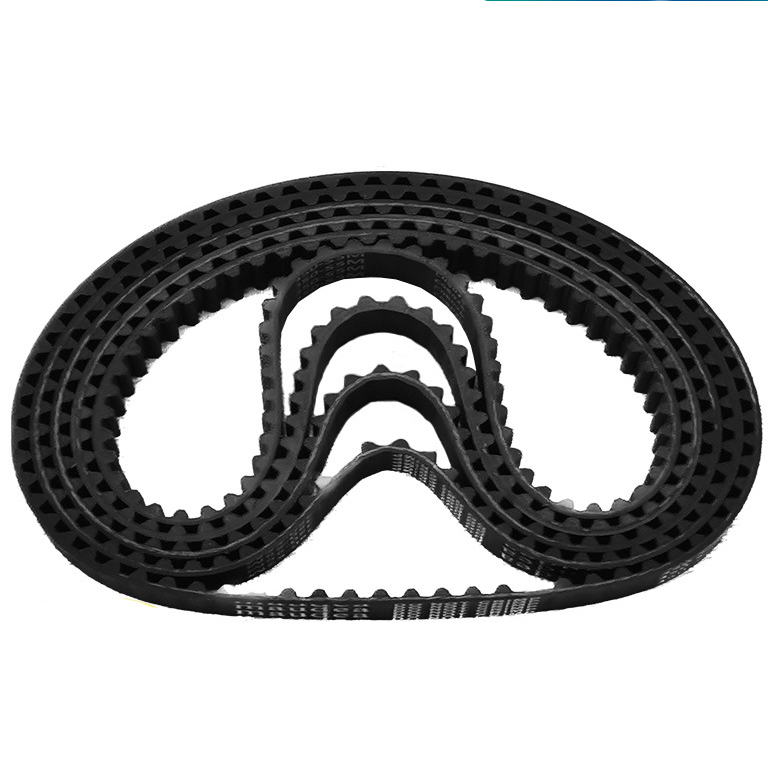

Standard Timing Belts

These belts are typically made of rubber with reinforced fibers and teeth that mesh with metal pulleys. They are often used in passenger vehicles and some industrial applications.

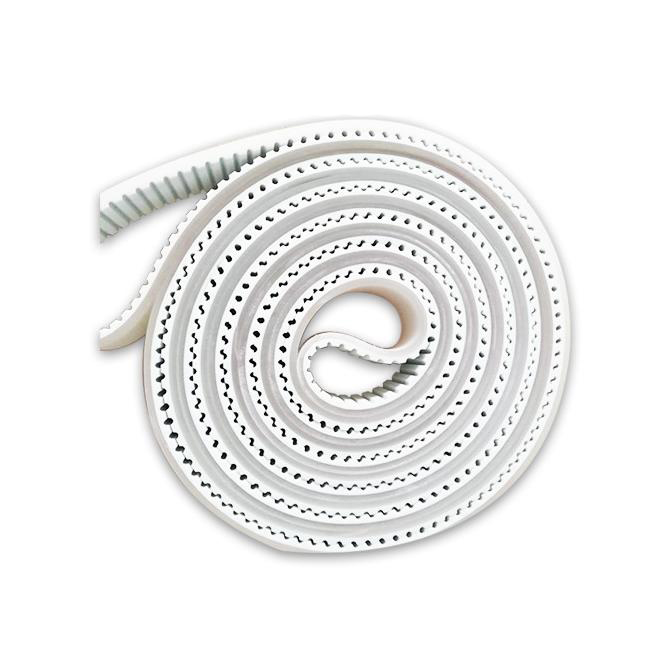

Polyurethane Timing Belts

Polyurethane timing belts are highly durable and resistant to wear, chemicals, and temperature extremes. These belts are often used in more demanding applications such as machinery, conveyors, and certain high-performance automotive engines.

Kevlar or Steel Reinforced Timing Belts

Some high-performance timing belts are reinforced with materials like Kevlar or steel to increase their strength and longevity. These are commonly found in performance vehicles or in applications that require high torque and endurance.

Silent or Low-Noise Timing Belts

Silent timing belts are designed to reduce noise during operation. They use special materials and tooth profiles to minimize vibrations and noise, which is useful in automotive engines and high-precision equipment.
