Key Characteristics of Slewing Bearings:

1. High Load Capacity
   Slewing bearings are built to support a combination of axial loads (along the bearing’s axis), radial loads (perpendicular to the axis), and tilting moments (torque), making them ideal for heavy-duty applications.

2. Large Diameter
   These bearings are typically large in diameter compared to conventional bearings. Their size allows them to carry the substantial loads required by equipment such as cranes, excavators, and radar systems.

3. Multiple Functions
   Slewing bearings are capable of handling a range of forces simultaneously, including axial, radial, and moment (bending) forces. This makes them versatile in supporting rotating structures that also require high levels of stability.

4. Low Speed, High Torque Applications
   Slewing bearings are typically used in applications where there is slow rotation but high torque or load, such as in construction machinery, marine applications, and industrial rotating equipment.

5. Sealed for Protection
   Slewing bearings are often sealed to prevent dirt, dust, and moisture from entering, which can cause premature wear. The seals also ensure the lubrication stays inside the bearing, which prolongs the life of the bearing.

Structure of Slewing Bearings:

Slewing bearings typically consist of the following main components:

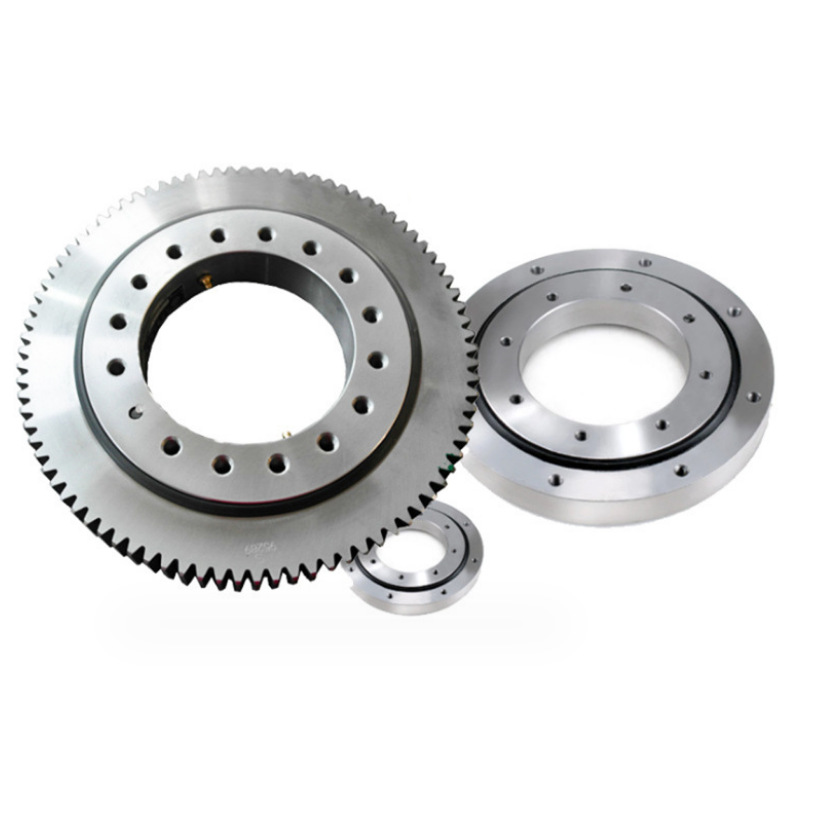

1. Outer Ring (Raceway): The outer ring is the larger part of the bearing and usually contains a gear, allowing for engagement with other parts of the machinery for rotation.

2. Inner Ring: The inner ring supports the shaft or the rotating part and provides the surface for the rolling elements (balls or rollers).

3. Rolling Elements (Balls or Rollers): These are placed between the inner and outer rings to reduce friction and allow smooth rotation.

4. Spacer: Used to maintain uniform spacing between the rolling elements.

5. Seals: Protect the internal components of the bearing from contaminants and retain lubrication.

Types of Slewing Bearings:

1. Single Row Ball Slewing Bearing
   This is the simplest form, where a single row of balls is used to support axial and radial loads. It's typically used in applications with light to moderate loads.

2. Double Row Ball Slewing Bearing
   This design uses two rows of balls, allowing for higher load capacities compared to single-row designs. It's often used in heavier machinery where axial, radial, and tilting moment loads are significant.

3. Triple Row Roller Slewing Bearing
   Uses three rows of cylindrical rollers and is designed to handle heavy loads, including large tilting moments. This type is more common in heavy-duty applications like large cranes, excavators, and rotary tables.

4. Four Point Contact Ball Slewing Bearing
   This bearing has a design where the balls contact the raceways at four distinct points. It is used for applications where both axial and radial loads, as well as tilting moments, need to be supported.

5. Crossed Roller Slewing Bearing
   Crossed roller bearings have rollers arranged at a 90° angle to each other, allowing them to carry axial, radial, and moment loads simultaneously in all directions. These are used in very high precision applications, such as robotics and optical equipment.

Applications of Slewing Bearings:

1. Cranes
   Slewing bearings are crucial in construction and shipyard cranes, allowing the arm or boom to rotate smoothly while lifting heavy loads.

2. Excavators
   Excavators use slewing bearings to allow the digging arm and bucket to rotate in a circular motion while carrying heavy loads.

3. Wind Turbines
   Slewing bearings are used in the yaw system of wind turbines, allowing them to rotate and adjust the orientation of the blades to optimize wind capture.

4. Port Equipment
   Container cranes and ship-to-shore cranes use slewing bearings to rotate the load-handling arm to load and unload containers from ships.

5. Radar Systems and Antennas
   In radar systems or large satellite dishes, slewing bearings help in rotating and positioning the system to accurately capture data from different directions.

6. Mining Equipment
   Large mining equipment, like draglines and rotary drills, utilizes slewing bearings to enable the movement of heavy machinery in harsh environments.

7. Solar Tracking Systems
   Slewing bearings are used in solar panel tracking systems, allowing solar panels to rotate and adjust their angle to follow the sun throughout the day.

Advantages of Slewing Bearings:

1. High Load Capacity: Can support large loads due to their design and construction.

2. Reduced Maintenance: When properly sealed and lubricated, slewing bearings require less maintenance compared to traditional bearings.

3. Versatility: They handle multiple load types (radial, axial, and moment loads) simultaneously.

4. Smooth Rotation: Provide smooth, controlled rotation in machinery, which is crucial for precise operations.

5. Durability: Typically built with high-quality materials that withstand heavy-duty, long-term operation.

Disadvantages:

1. Cost: Due to their size and complexity, slewing bearings tend to be more expensive than traditional bearings.

2. Size: Their large size and weight can sometimes make them difficult to install and transport.

3. Sensitivity to Contamination: If seals fail or if the bearing is not properly maintained, they can be susceptible to dirt and moisture, which may lead to premature failure.

Conclusion:

Slewing bearings are a crucial component in many heavy-duty, rotating machinery applications. Their ability to support axial, radial, and moment loads simultaneously makes them ideal for equipment where high loads and smooth rotation are required. These bearings are found in industries ranging from construction to wind energy and beyond, providing reliability and durability for demanding operations.
