ConveyingBelt

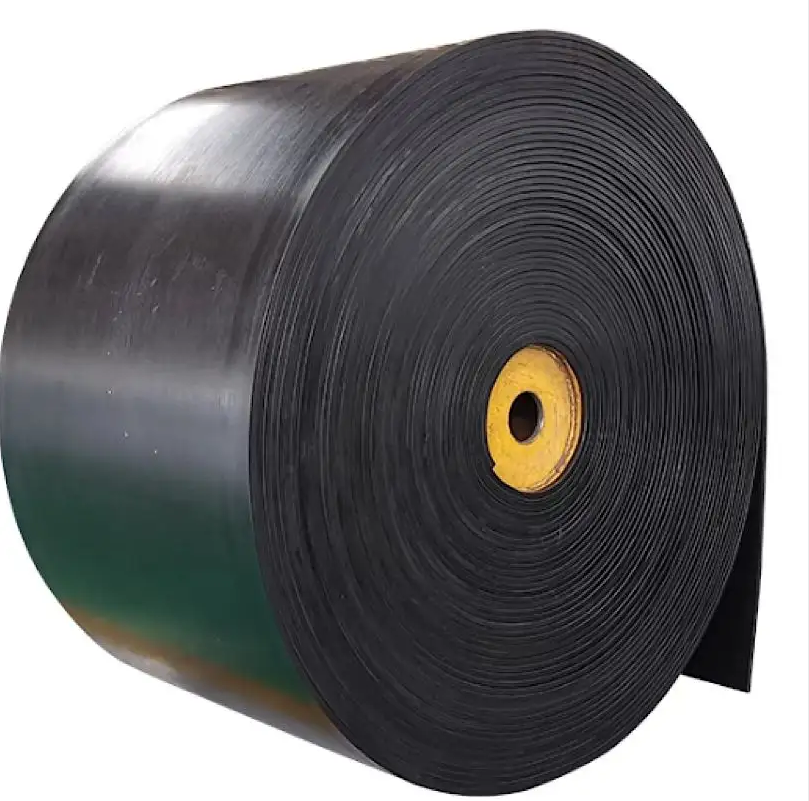

Conveyor belts, also known as conveyor belts, are rubber, fiber, metal composite products, or plastic and fabric composite products used in belt conveyor belts to carry and transport materials. Conveyor belts are widely used in cement, coking, metallurgy, chemical, steel and other industries where the conveying distance is short and the conveying volume is small.

DESCRIPTION

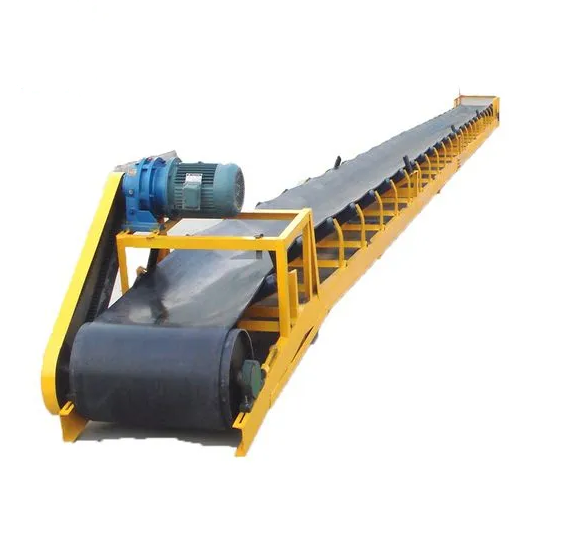

Conveyor belts and belt conveyors are widely used in agriculture, industrial and mining enterprises, and transportation industries to transport various solid block and powder materials or finished items. Conveyor belts can transport continuously, efficiently, and at large angles. Conveyor belts It is safe to operate, the conveyor belt is easy to use, easy to maintain, and has low freight. It can shorten the transportation distance, reduce the project cost, and save manpower and material resources.



As material

PVC conveyor belt, PU conveyor belt, polyethylene conveyor belt, plastic chain plate conveyor belt, modular mesh conveyor belt, polypropylene conveyor belt, nylon conveyor belt, Teflon conveyor belt, stainless steel conveyor belt.

As Heat resistance

①. Heat-resistant conveyor belt: TI type can withstand no more than 100 degrees, T2 type can withstand no more than 125 degrees, and T3 type can withstand no more than 150 degrees.

②. High temperature resistant conveyor belt: temperature resistance is not greater than 200 degrees

③. Burn-resistant conveyor belt (metal mesh core conveyor belt): temperature resistant 200-500 degrees

Main technical parameters
Bearing roller form Bend speed Bend width(mm)
(m/s) 500 650 800 100 1200 1400
  Conveying capacityQ(m3/h)
Through roller 0.8 78 138 - - - -
1.0~2.5 97~232 164~391 278~661 435~1033 655~1556 891~2118
3.15 - - 821 123.3 1858 2528
4 - - - - 2202 2996
Flat roller 0.8 41 67 118 - - -
1.0~2.5 52~125 88~211 147~350 230~546 345~821 467~1117
Power (kw) 1.5~40 1.5~50 2.2~75 4~100 7~185 4~185
