Lip seal

lip seals

Feature:

1. Reliable sealing performance

2. Small friction, smooth motion.

3. The pressure is good, use a wide range of pressure.

4. The structure is simple and inexpensive.

5. ease of installation.

6. Material: PU; POM; FKM; NBR; PTFE etc.

DESCRIPTION

The Y- seal is a typical labial seal.

According to the height and width of the section, it can be divided into wide, narrow, Yx and other categories; If the height of the two lips is equal, it can be divided into Y-sealing rings and Y-ring with different lips and Y-shaped sealing rings with aperture.

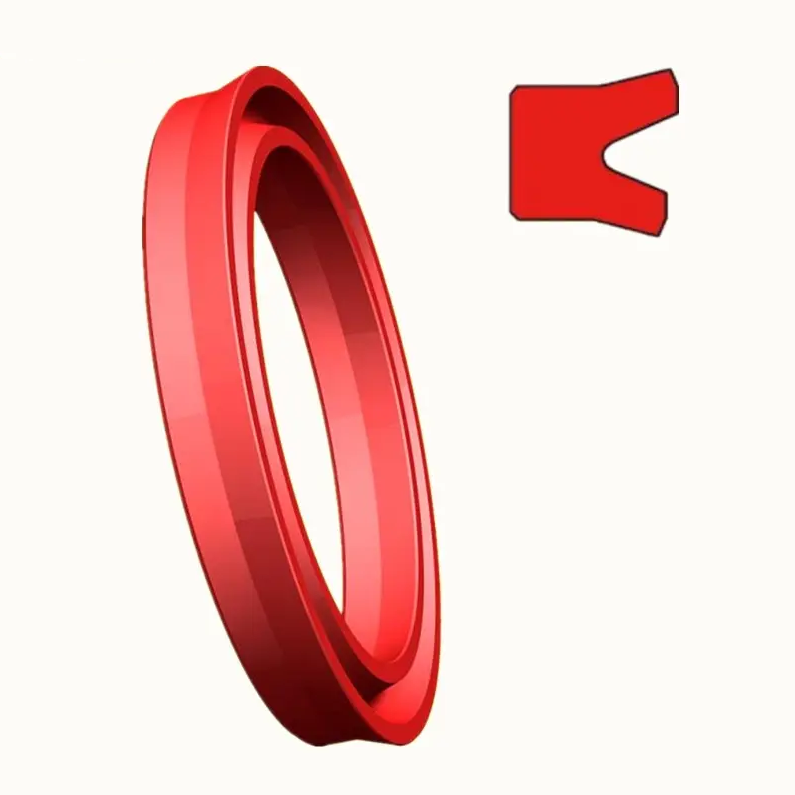

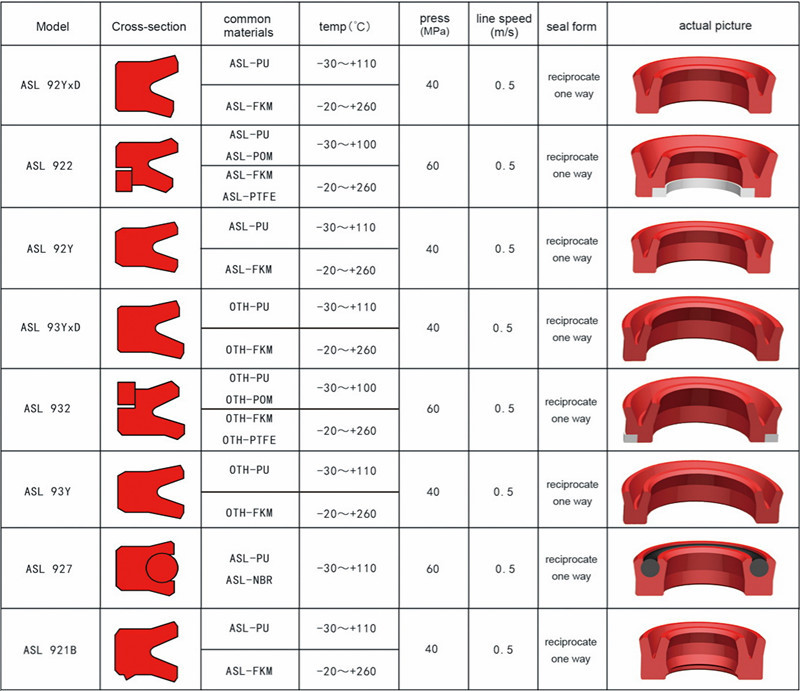

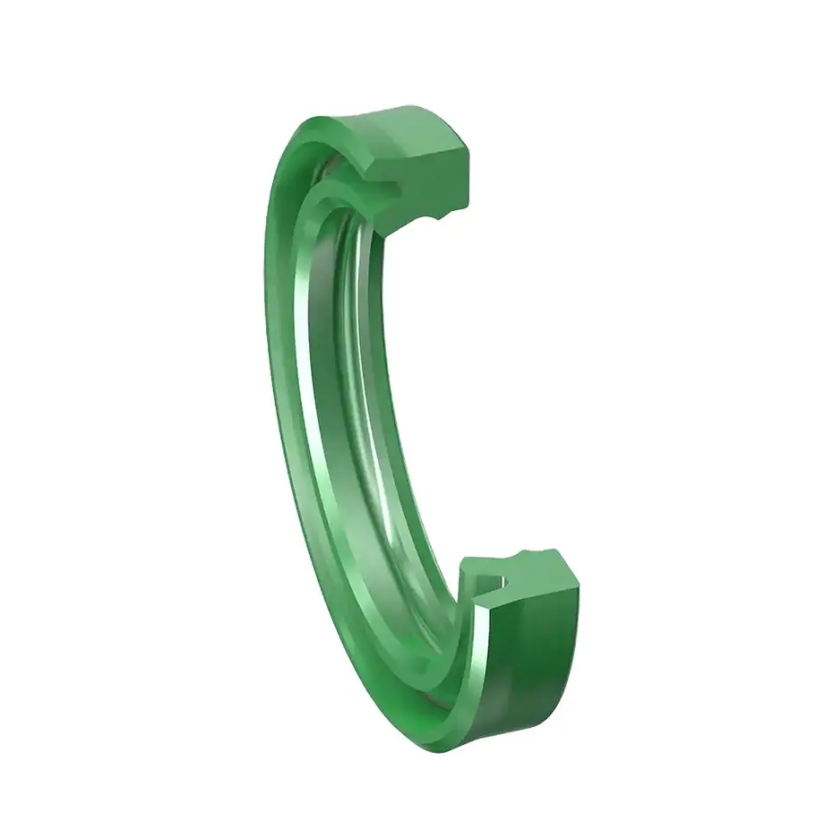

Y- Ring’s cross-section drawing The Y-shaped sealing ring section is Y-shaped, so it is called a Y- ring

Y-ring seal is widely used in reciprocating sealing device, its service life is higher than O-ring seal. The applicable working pressure of the Y-type sealing ring is not more than 40MPa, and the working temperature is-30~80℃; Working speed range: 0. 01~0. [] 6 m/s for polyurethane rubber; 0.05~0.3m/s for polyurethane rubber; 0.01 ~ lm / s. Y-type sealing ring sealing performance, service life and the working pressure limit of different retaining rings, are better than polyurethane rubber material.

Y-ring seal features ：

(1) Reliable sealing performance

(2) Frictional resistance and smooth movement.

(3) Good pressure resistance, and a wide range of use pressure.

(4) Simple structure, low price.

(5) Easy for installation.

Y- sealing ring is the most commonly used material is polyurethane rubber, polyurethane rubber Y- sealing ring has good sealing performance, service life and the use of different rings when the working pressure limit is higher

Lip seal V type ring

V-ring seal is suitable for hydraulic oil, water and emulsion and other media, using pressure up to 40MPa, surface line speed of 0.5m · s-1, good sealing performance, allowing certain eccentric movement, impact pressure and vibration pressure.

V-rings can be used in multiple combinations, suitable for high pressure, large diameter and long stroke and other working conditions.

V-rings can be used for shaft seals and hole seals.

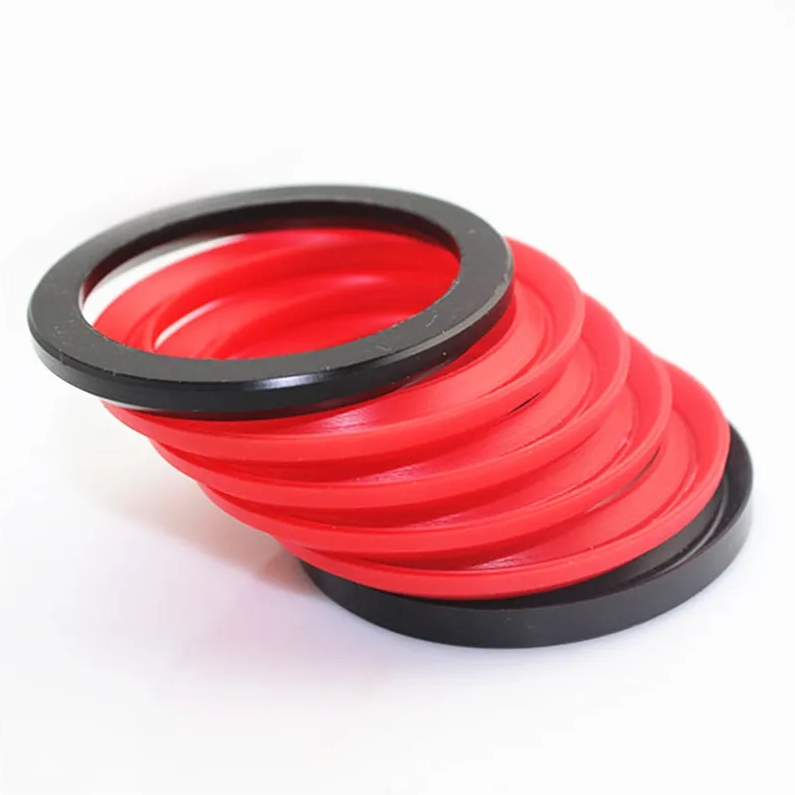

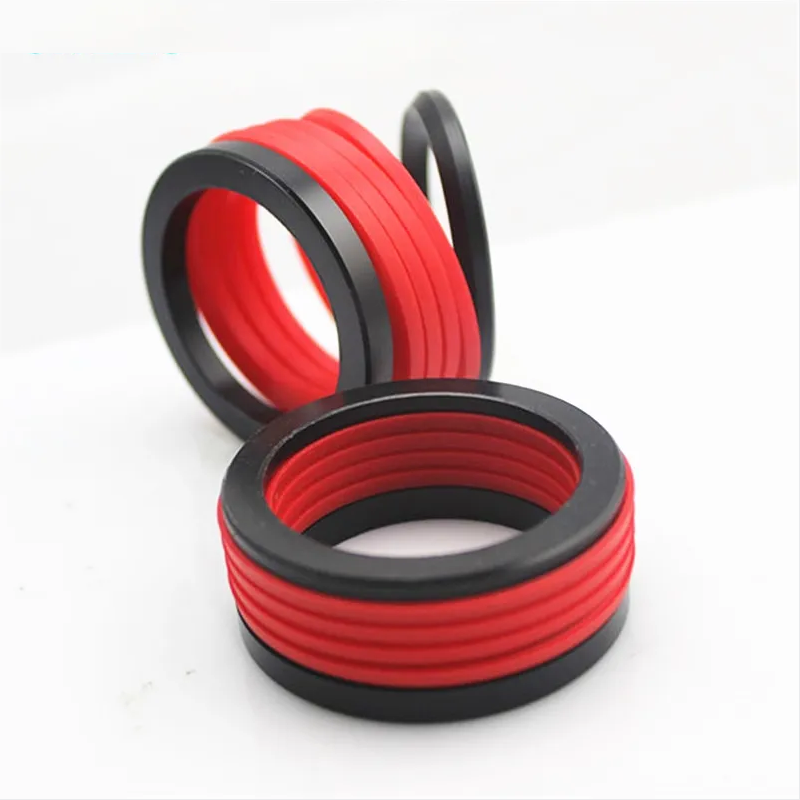

The following figure is a schematic diagram of the section structure of the V-shaped axis seal, which is mainly composed of the combination of pressure ring, 3~7 V-rings and support ring.

The lip of the V-shaped ring surplus with the shaft (plunger), which will produce certain deformation after assembly. Due to the action of the support ring, the deformation only occurs in the lip, so that it produces pre-tightening force with the sliding surface and has the effect of "self-sealing".

When the medium pressure, the lip and the sliding surface contact more closely, the medium is difficult to pass, produce the first sealing effect, if there is leakage, be sealed in the second V-ring, so continuous until the leakage is prevented, to achieve the sealing effect.

The combination number of V-ring depends on the pressure size of the working medium. Generally, the pressure is large and the number is large, but the friction resistance increases, and the lip wear also increases.

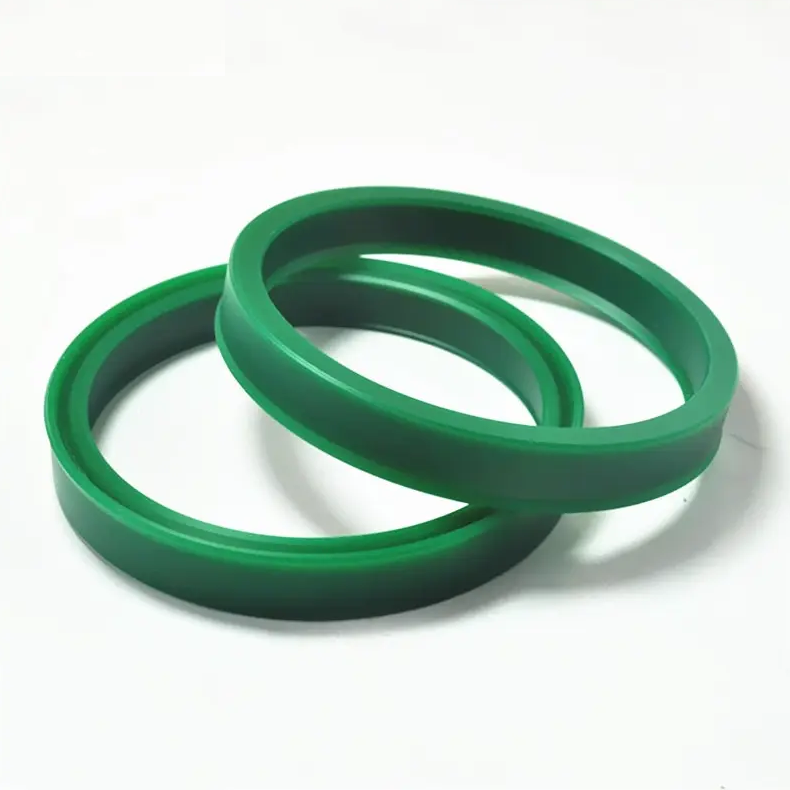

lip seal U type ring

U-shaped seal ring is commonly used in the hydraulic cylinder;it is a kind of typical lip seals,working very good for piston and piston rod. Polyuretane U ring is mainly used in hydraulic cylinder.It has good mechanical properties and good oil resistance, and is the most commonly used in hydraulic oil cylinder with middle pressure and high pressure.

Features: Good sealing performance.

Use: Use: the U-shaped ring is easy to roll under separate conditions, so it needs to be used with the tin bronze support ring.

Application: The U-shaped sealing ring is only suitable for the hydraulic cylinder with low working pressure or low movement speed.

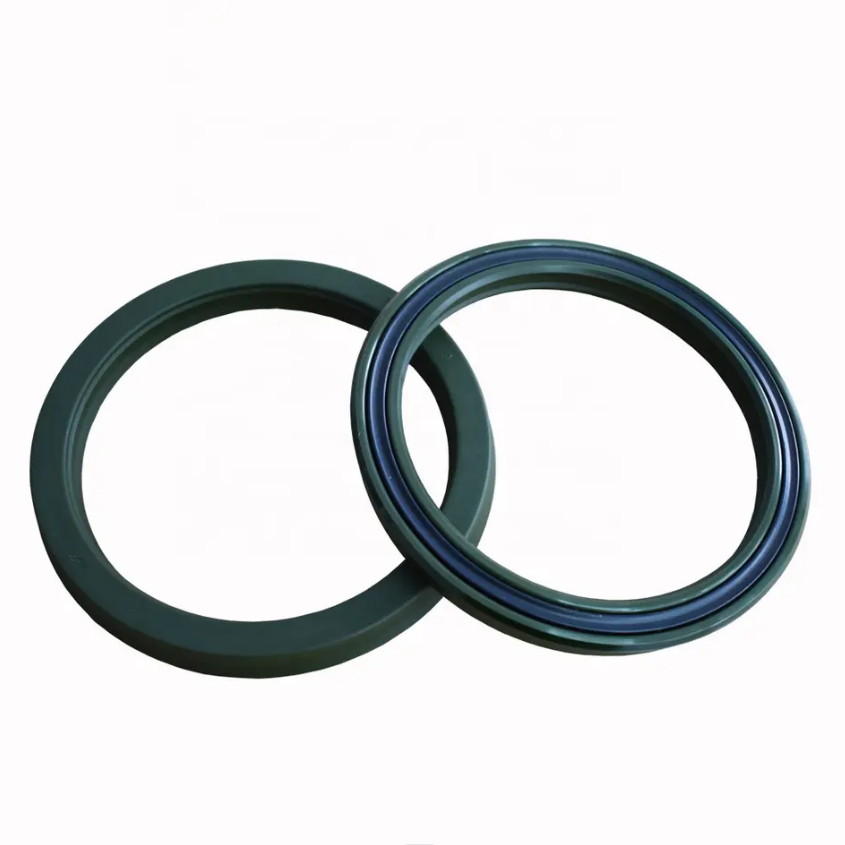

lip seal X type ring

X-ring seal, also known as star sealing ring. It is used to be installed in a groove with special small compression rate to reduce friction, and also be used in the groove with same specification as O -ring.

X-rings have lower friction and overcome torsion well, then better lubrication; It is able to be a sealing element at lower speeds and suitable for static sealing.

X-ring is a four-lips seal , its shape similar to X and has the following advantages:

1. Compared with the O-ring, the X-ring forms a lubrication cavity between the sealing lips, which has less friction resistance and starting resistance.

2. Because the location of flying edge is in the concave of cross section, so the sealing is very well.

3. Cross-section with Non-circular is able to avoid scrolling during reciprocating motion.

X seal rings has a wide range of applications.

Select the appropriate material according to the temperature, pressure, and medium.

In order to adapt the X-shaped sealing ring as a sealing element to the application situation, we need to consider the mutual constraints between all the working parameters.

The peak temperature, continuous operating temperature, and operating period must be taken into account when determining the application specification.

In the rotating situation, we must also consider about heating.
