NBR(nitrile) gaskets

have properties such as oil resistance, acid and alkali resistance, cold and heat resistance, and aging resistance. They can be directly cut into sealing gaskets of various shapes and are widely used in medicine, electronics, chemical industry, antistatic, flame retardant, food and other industries.

Operating temperature: -20℃~110℃

Operating pressure: PN<=16MPa

Common specifications: DN15～DN400

FKM Rubber Gaskets

FKM rubber gaskets are made of fluoroelastomer, a synthetic rubber that is known for its hard wearing properties. The material is used for O-rings, seals.

FKM gaskets are very commonly used in the oil and gas industry, due to FKM ability to withstand aggressive fuel, chemicals and a wide range of temperatures. Temperature-wise, FKM operates without a problem between -10c and up to 250c. Chemically, it is resistant to biocides, corrosion inhibitors, hydrate inhibitors and descalers. FKM also withstands high pressures and vibrations.

-Can be customized.

-Thickness:0.5~10.0mm

Silicone Rubber Gasket

Advantages of silicone gaskets

Heat resistance: Silicone rubber has much better heat resistance than ordinary rubber. It can be used almost forever at 150° without performance changes. It can be used continuously at 200° for 10,000 hours and can also be used at 350° for a period of time. . Widely used in occasions requiring heat resistance, thermos bottle sealing rings, pressure cooker rings and heat-resistant handles. Cold resistance: The temperature of ordinary rubber is -20°-30°, that is, silicone rubber still has good elasticity at -60°-70°. Some specially formulated silicone rubber can also withstand extremely low temperatures, such as: low temperature washer.

performance

1. It has excellent sealing performance and is waterproof and leak-proof.

2. It has good fresh-keeping effect and is completely non-toxic and tasteless.

3. It can be heated at high temperatures without deformation or harmful substances.

4. Good tensile strength performance, specially inspected and tested.

5. It will not turn yellow or fade after long-term use.

6. Corona resistance, arc resistance, high and low temperature resistance, good aging resistance and high temperature resistance

Operating temperature: -100℃~300℃

Operating pressure: PN<3MPa

Common specifications: DN15～DN400

Neoprene Rubber Gasket

Neoprene gasket is a heat-resistant sealing material with good high-temperature resistance and can withstand high temperatures from -180°C to 260°C. Therefore, neoprene gaskets are widely used for sealing mechanical equipment and industrial pipelines in high temperature environments.

Features:

1. Good oil resistance

Neoprene gaskets also have excellent oil resistance, can withstand the erosion of various oil media, and are not easily corroded by solvents such as petroleum, lubricating oil, diesel, etc., thereby ensuring the normal operation of the equipment.

2. Good corrosion resistance

Neoprene gaskets also have excellent corrosion resistance and can resist erosion by some strong acids, strong alkali and chemical corrosive substances, thereby ensuring the service life of the seal.

3. Good sealing performance

Neoprene gaskets have excellent sealing performance, can seal various gas and liquid media, and play a good sealing role in pipes, containers, valves, etc.

4. Wide range of applications

Neoprene gaskets have a wide range of applications and are often used in machinery, electricity, construction and other fields, such as sealing of engines, pumps, valves, pipes, water tanks, fuel tanks, etc.

Density: 1.2~2.0G/cm3

Temperature resistance: -180℃~+260℃

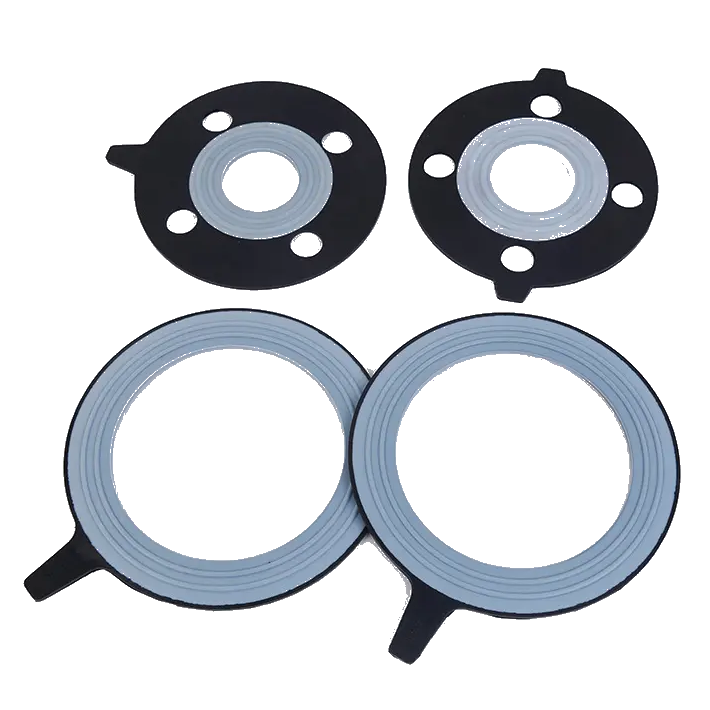

PTFE rubber composite gasket

PTFE and EPDM composite flange gasket

Material: EPDM+PTFE

Size:DN15-DN500

Work temperature:130℃

Working pressure：≤25bar

Application :Applicable to water, steam, oil, medium acid and alkali and medium and low pressure flanges

Can be customized
