The function of a hydraulic wear ring is to guide the shaft and hole sealing of a hydraulic cylinder, absorbing transverse forces. At the same time, it prevents metal-to-metal contact, optimizing the performance of the sealing system.
DST has a rectangular cross-section with rounded or chamfered edges, thus preventing impermissible edge force in the corner radius of the grooves. The chamfers also serve to facilitate installation, e. g. When inserted into the cylindrical tube or guide bush.
The function of a hydraulic wear ring is to guide the shaft and hole sealing of a hydraulic cylinder, absorbing transverse forces. At the same time, it prevents metal-to-metal contact, optimizing the performance of the sealing system.
DST has a rectangular cross-section with rounded or chamfered edges, thus preventing impermissible edge force in the corner radius of the grooves. The chamfers also serve to facilitate installation, e. g. When inserted into the cylindrical tube or guide bush.
Embossing structure

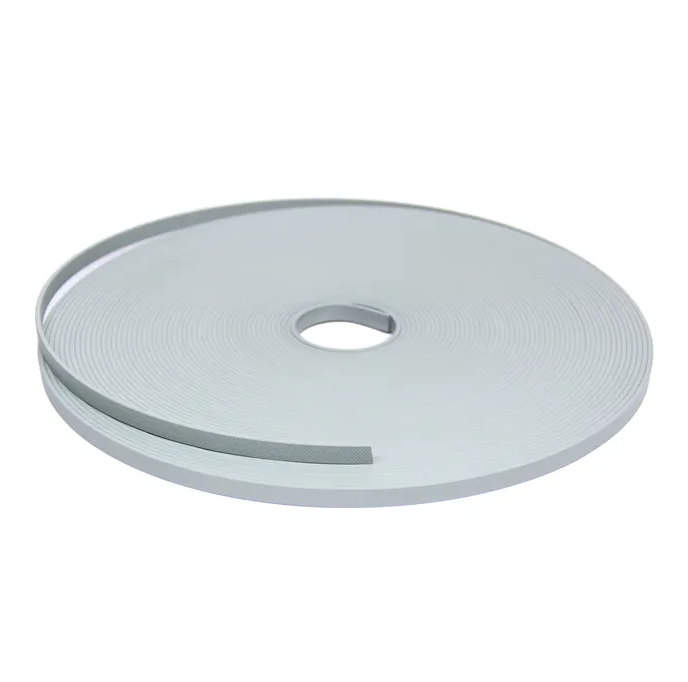

-The thickness of PTFE guidance tape is greater than or equal to 2mm can be
supplied with embossing.
-Embossing structure is the sliding surface which with small lubrication micro
cavity, which can promote the formation of a lubricant film, improve the micro-lubricating, embedded micro foreign matter, and help to protect the seal system.
-In consideration of the guidance tape can be used for piston and rod.
-Wear strips are generally made into a double-sided embossing.
-Our embossing have 4 types of pattern, including teardrop structure, round point
pattern, diamond pattern and coin pattern.
-Please feel free to contact us if you need more details about our factory and/or
products.

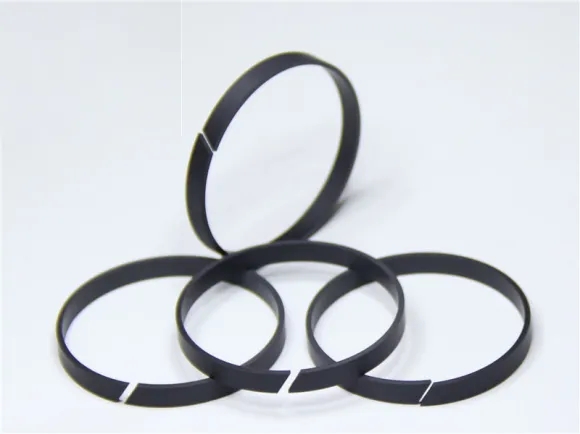

Product material 1 | Filled PTFE |
Temperature | -60~+260℃ |
Speed | ≤15m/s |
Material description | PTFE filled Bronze, PTFE filled carbon fiber and MoS2, PTFE filled Graphite |
Available Color | Black, Gray-black, Coffee |
Material Strength | Good wear resistance, good self-lubricating performance, environmental protection |
Product material 2 | phenolic resin |
Temperature | -60~+120℃ |
Speed | ≤1m/s |
Material description | Phenolic resin is a very effective, heavy-load, easy to use material, has excellent physical |
and mechanical properties, widely apply to reciprocating motion, swing motion and low speed rotation and so | |
on. | |
Available Color | Red, blue |
Material Strength | Compatible with a variety of working mediums. |
Product material 3 | UH-PE |
Temperature | -160~+100℃ |
Speed | ≤2m |
Material description | Ultra High Molecular Weight Polyethylene Fiber, also call UHMWPE. |
Available Color | White. |
Material Strength | Chemical resistance, good wear resistance, small coefficient of friction. |

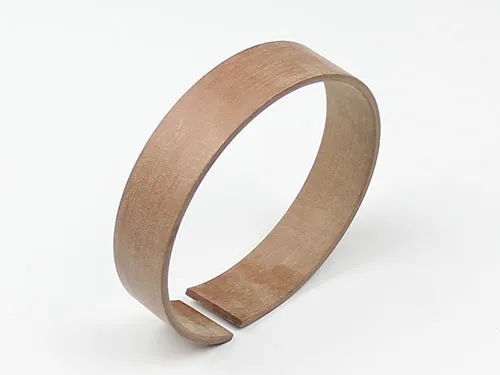

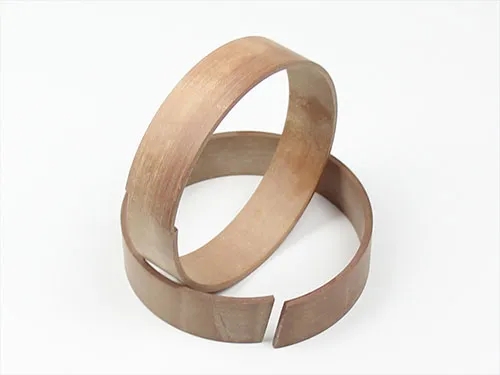

Product material 4 | phenolic resin with fabric |
Temperature | -60~+120℃ |
Speed | ≤1m/s |
Material description | Phenolic resin with fabric material has been widely used in the wear ring, support ring, bushings, washers, |
bearingsand other mechanical parts of engineering machinery cylinders. | |
Available Color | Brown |
Material Strength | High mechanical properties, good oil resistance and high wear resistance, low water absorption |
Type of cut | |
Standard design | angle cut |
Special design | Straight cut, step cut |
Edge | |
Standard | no chamfer |
Special | rounded or chamfer form |
medium | Hydraulic oil, flame retardant oil, water, gas |
Applied device | Hydraulic equipment / cylinder / rolling mill / hydraulic press |
